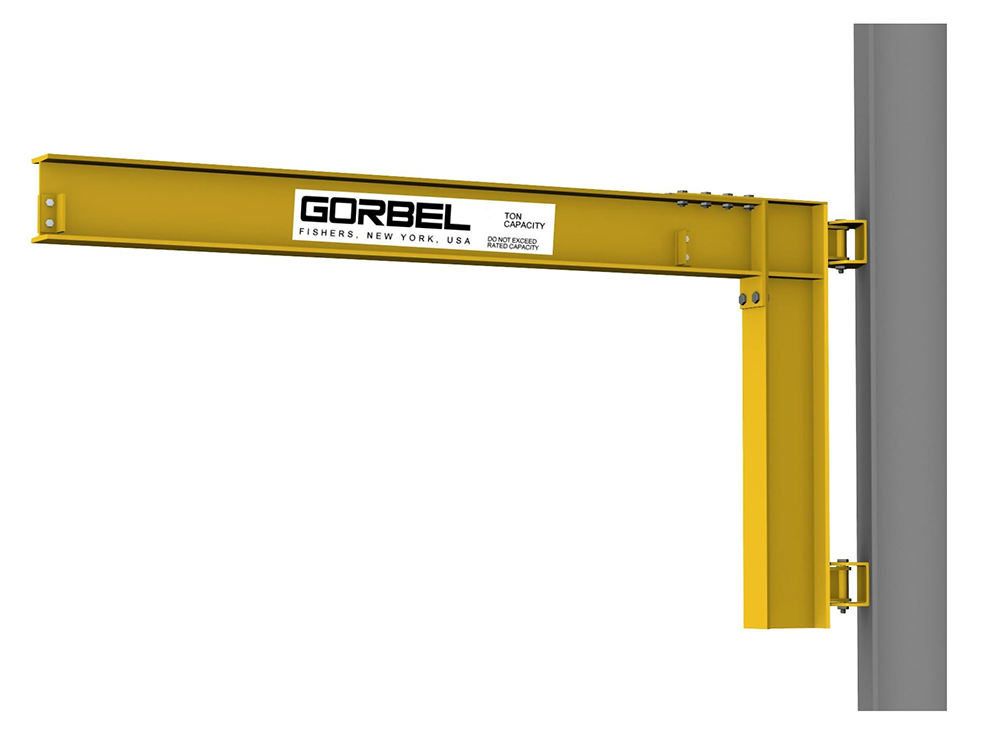

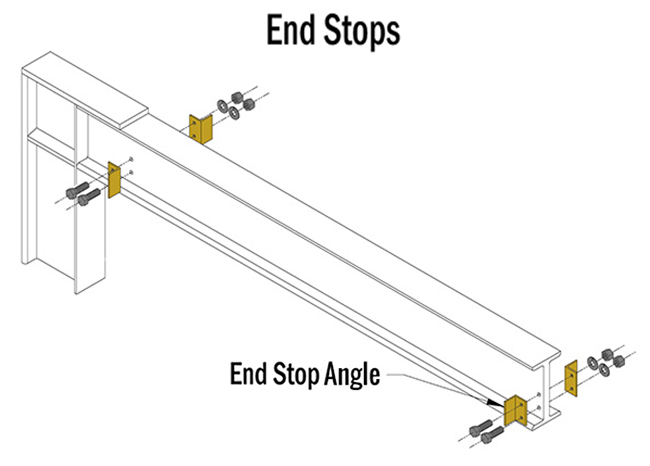

Gorbel Wall Cantilever I-Beam Jib Crane, 500 lbs, Span 20 ft

Manufacturer: Gorbel

SKU: WC200-B1-20-W10-500

Manufacturer part number: WC200-B1-20-W10-500

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

Color *

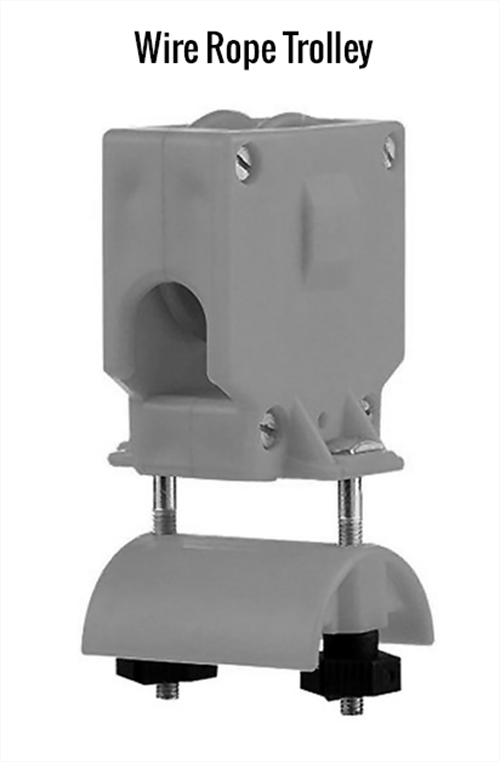

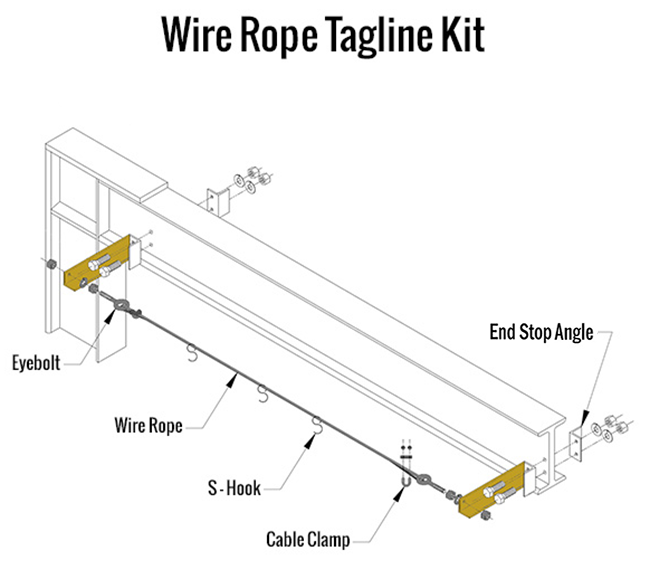

Festoon Conductor Type (Tagline Kit Included) *

Crane Accessories

Extra Touch Up Paint [+$15.66]
Rotation Stops (req. field welding) [+$62.61]

$3,355.34

Qty:

Documents, Drawings, and Manuals

Brochure

Gorbel Wall Mounted Jib Crane Brochure

Manual

Gorbel Wall Cantilever I-Beam Jib Crane Manual

Standards

Gorbel Crane Design Standards

Warranty

Gorbel Cranes 10-Year Warranty

Product Specifications

Attribute name	Attribute value
Features	Capacity: 500 lbs. Span: 20 ft. Beam Size: W10 Fitting Size: B1 Flange Width: 5.77 in. Bracket Centers: 4 ft. Thrust and Pull: 4.62 Kips Overturning Moment: 18.5 K-Ft Axial Load: 1.15 Kips Hoist Allowance: 75 lbs. Coverage: 200° Semi-Circular Rotation Shipping Weight (Overall Weight): 751 lbs. Ideal for individual use in bays, along walls or columns of plants, or as a supplement to an overhead crane or monorail system. The jib has the advantage of providing maximum lift for the hoist, since it can be installed very close to the underside of the lowest ceiling obstruction. When the bracket center dimension is 6 ft. or less, the mast/boom connection is welded. This provides the most economical means of installation. When the bracket center is greater than 6 ft., a bolted mast/boom connection is used, which enables the larger cranes to be shipped disassembled for ease of handling during shipping and installation. Grease fittings are provided for easy field lubrication. Designed to support tool balancers, air balancers, vacuum lifters, and hoists. All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications. All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
Warranty	10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of Origin	Made in the USA
