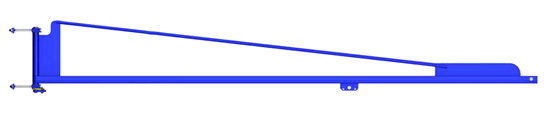

Gorbel Wall Mounted Tool Balancer Jib Crane, 50 lbs, Span 10 ft

Manufacturer: Gorbel
SKU: TSJ50-WM-50-10
Manufacturer part number: TSJ50-WM-50-10
Lead Time (subject to change, call to verify): typically ships in 10-13 business days
Ship to
Shipping Method
Estimated Delivery
No shipping options
Product Specifications
Attribute nameAttribute value
  • Model: TSJ50-WM-50-10
  • Capacity: 50 lbs.
  • Span: 10 ft.
  • Enclosed Track Series: 250
  • Thrust and Pull: 500 lbs.
  • Anchor Bolt Size: 1/2 in. dia. (4 EA. REQ. - NOT INCLUDED WITH JIB CRANE)
  • Coverage: 180° Semi-Circular Rotation
  • Shipping Weight (Overall Weight): 157 lbs.
  • Lightweight tie rod style ensures easy movement and high performance without giving you more crane than you need for low capacity applications.
  • Designed to be smaller, lighter, and more cost effective for applications with suspended tooling or light duty lifting.
  • Small bracket centers allow for reduced headroom requirements.
  • All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
Warranty10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of OriginMade in the USA
