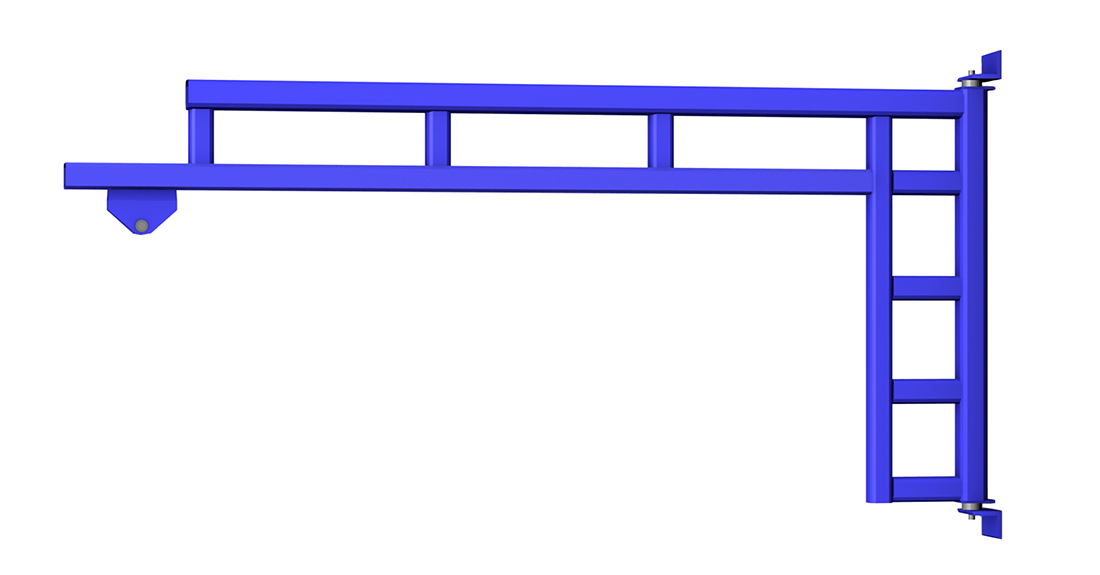

Gorbel Wall Mounted Work Station Jib Crane, 250 lbs, Span 6 ft

Manufacturer: Gorbel
SKU: WSJ200-250-6
Manufacturer part number: WSJ200-250-6
Lead Time: typically ships in 10-13 business days
*
*
$795.00
Product Specifications
Features
  • Capacity: 250 lbs.
  • Span: 6 ft.
  • Enclosed Track Series: 250
  • Overturning Moment: 2.07 K-Ft
  • Axial Load: 0.40 Kips
  • Thrust and Pull: 0.691 Kips

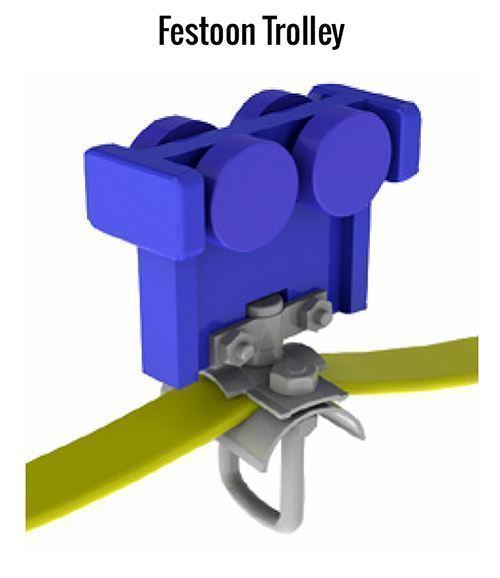

  • Hoist Trolley Included: 1 ea.
  • Hoist Allowance: 38 lbs.
  • Coverage: 200° Semi-Circular Rotation

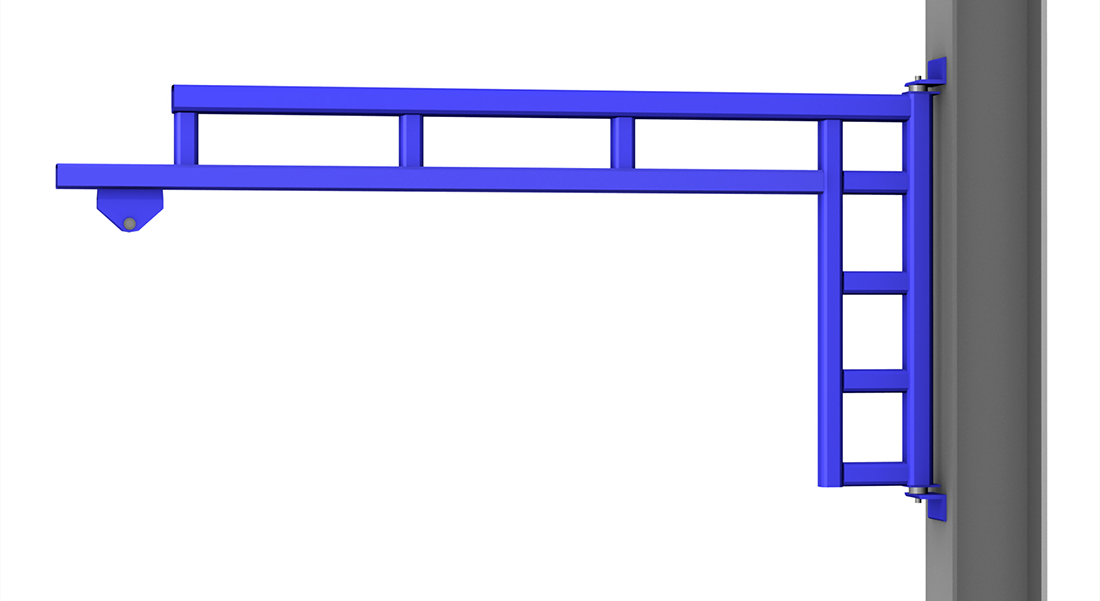

  • Boom assembly is designed to be mounted to a wall or column and comes with pivots at the top and bottom.
  • Designed to support tool balancers, air balancers, vacuum lifters, and hoists.
  • All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications.
  • All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
Warranty10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of OriginMade in the USA
