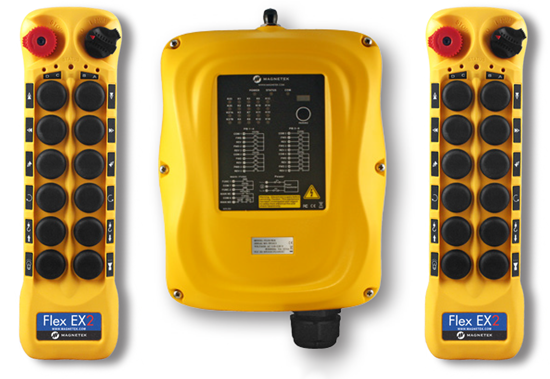

Magnetek Flex 12EX2 Radio Remote Control

Product Specifications

Attribute name	Attribute value

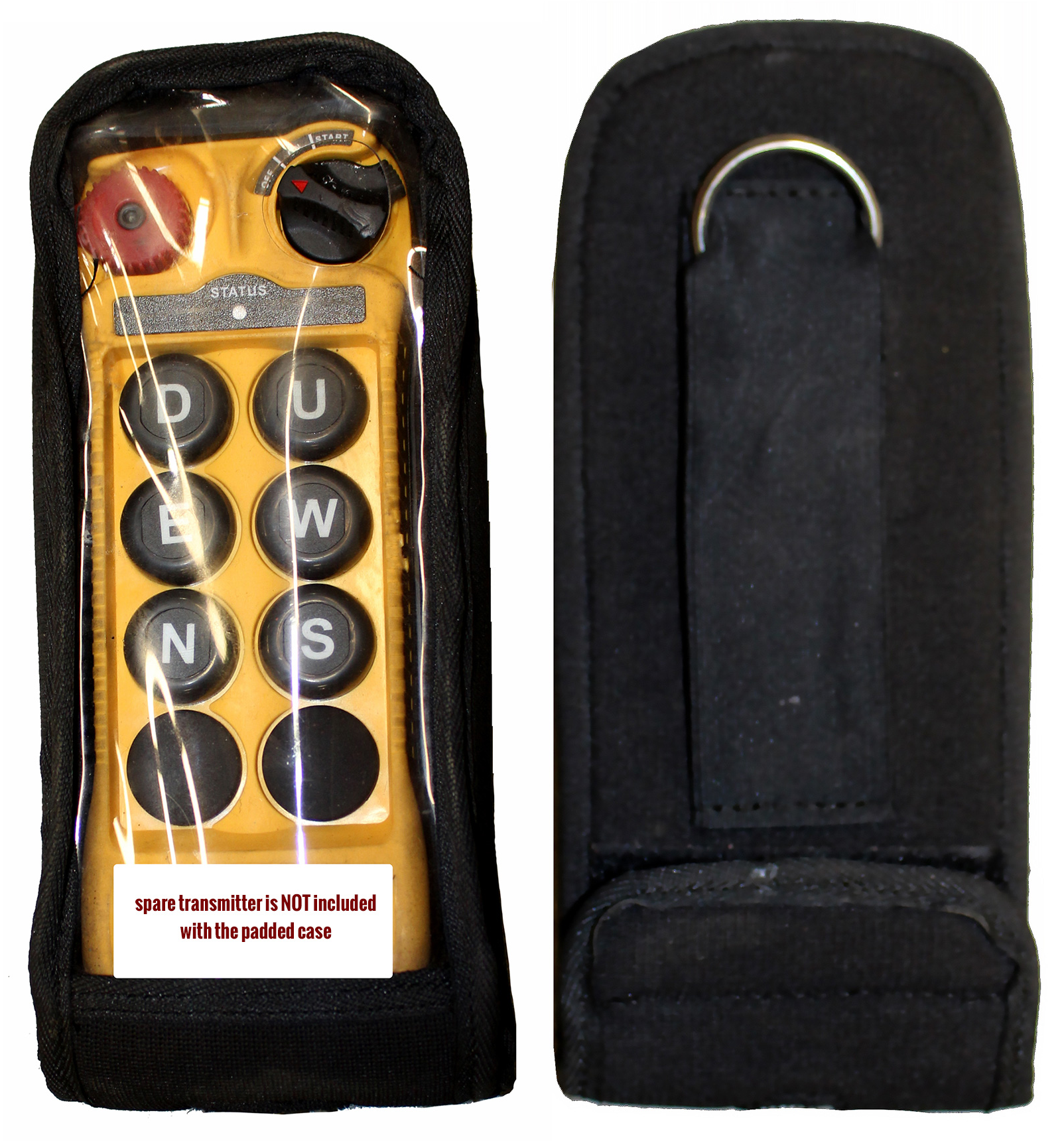

Features	System Applications: Ideal for use in material handling, overhead crane, mobile hydraulic and industrial applications. System Includes: 2 (two) Flex transmitters with twelve 2-speed pushbuttons (6-motion/2-speed, E-stop, and Off/On/Start), 1 (one) Flex receiver, TX label sheets, waist belt, vinyl TX covers, pre-wired output cable, and "AA" batteries, key switch, and necessary mounting hardware. System Model No.: FLEX-12EX2 (Replaces Older Generation - Model No. 0-FLEX-12EX) Frequency Range: 433MHz~434MHz. Frequency Deviation: 12.5 KHz Number of Channels: 62 channels Modulation: Digital frequency modulation based on Manchester Code, 20bit address, and 32bit CRC Parity Check and Hamming Code Encoding / Decoding Reference: Microprocessor-controlled Transmitting Operating Range: >100 Meters / 328 Feet Frequency Control: Synthesized PLL (Phase Lock Loop) Receiver Type: Frequency Auto Scanning Antenna Impedance: 50 ohms Responding Time: 60 Milliseconds (average) Transmitting Power: 0.3mW Receiver Sensitivity: -116dBm Transmitter Operating Voltage: 3.0VDC Transmitter Power Consumption: 5~22mA Output Contact Rating: 250VAC @ 8A Receiver Supply Voltage Options: 110~120VAC @ 50/60Hz (standard) 24/48VAC @ 50/60Hz (optional) 9-36VDC (optional) Receiver Power Consumption: 11.0 VA Enclosure Rating: IP-66 Enclosure Type: NEMA-4X Operating Temperature: -25°C ~ 75°C / -13°F ~ 167°F Transmitter Dimension: 9.05in (L) x 2.71in (W) x 1.37in (H) / 230mm (L) x 69mm (W) x 35mm (H) Receiver Dimension: 14.29in (L) x 8.97in (W) x 2.75in (H) / 363mm (L) x 228mm (W) x 70mm (H) Transmitter Weights: 296g / 10.4oz Receiver Weights: 2.5kg / 5.5lb (includes output cable) Two "AA" alkaline batteries provide more than 100 hours of operation. Unique I-CHIP design allows information and settings to be transferred between transmitters Ergonomically designed to be compact and lightweight to prevent operator fatigue Equipped with more than 200 programmable functions to suit all types of applications Reliable pushbuttons feature gold-plated contacts and are rated for more than one million press cycles. The defined snap-action steps provide positive tactile feedback even while wearing gloves Easy one-handed operation Enclosures are made from industrial-strength nylon and fiberglass composite materials for extra durability Each Flex EX2 system has over one million unique identification codes (20 Bit) and never repeats Advanced microprocessor controls with 32 bit CRC and Hamming Code provide ultra-fast, safe, precise and error-free encoding and decoding
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
