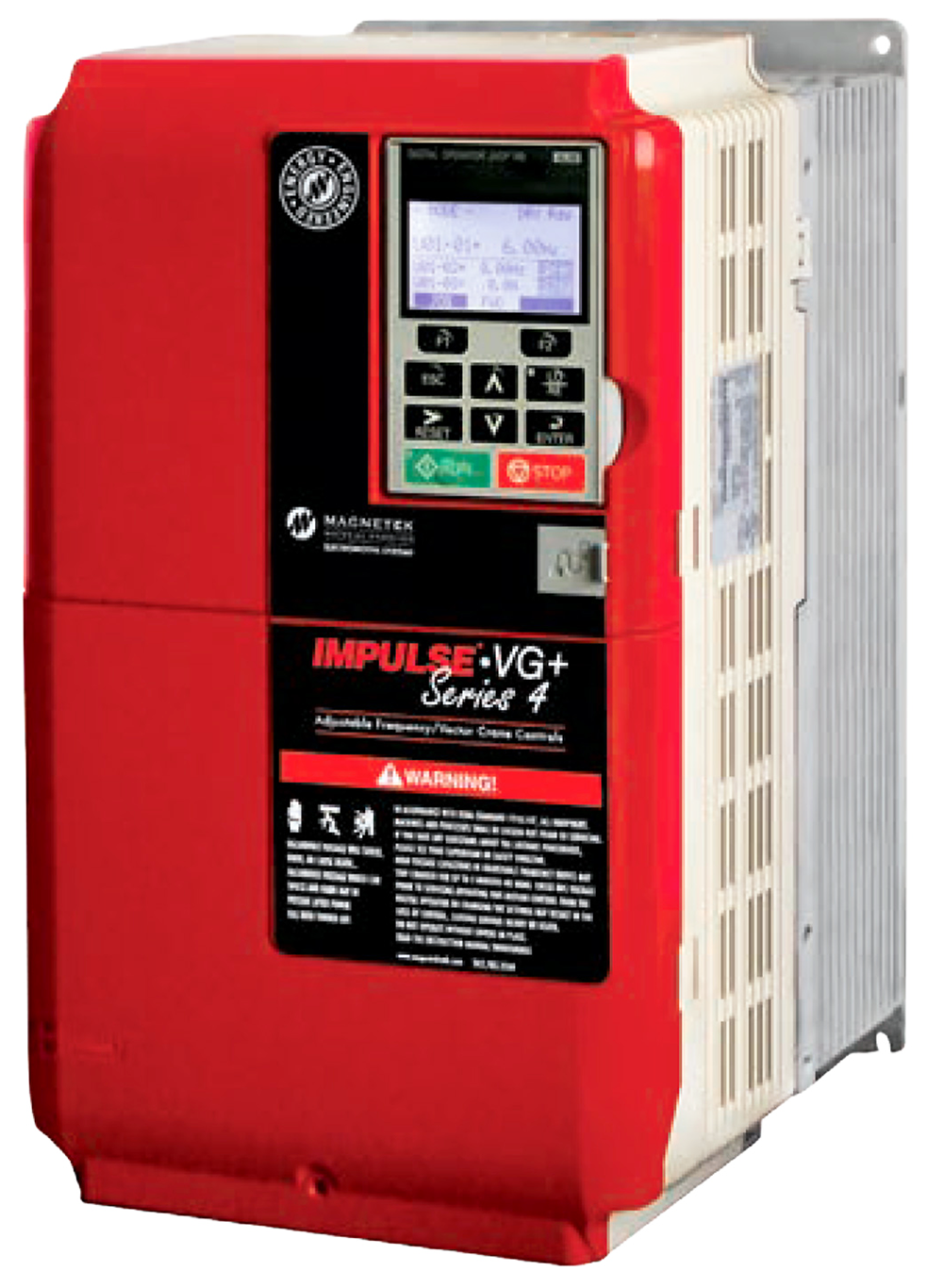

Magnetek VG+ Series 4, 2060-VG+S4

Manufacturer: Magnetek
SKU: 2060-VG+S4
Lead Time: typically ships in 3-5 business days
*
*
$4,242.00
Product Specifications
Features
  • Anti-Shock - Stabilizes loads by detecting and minimizing harmful torque increases due to operator induced load shock, reducing potential for equipment damage.
  • Brake Test - Verifies brake torque by capturing breakaway torque with a monitor parameter on the keypad, so you can perform preventative maintenance and commission the crane.
  • Torque Proving - Confirms the motor is providing enough torque to safely lift a load prior to releasing the brake.
  • Torque Limiting - Prevents the crane from performing a lift that could overload the motor and cause mechanical fatigue.
  • Brake Integrity Check - Tests the primary and emergency brakes to ensure they are mechanically capable of holding the load.
  • Bucket Control Software - Controls multi-line clamshell or grapple buckets that utilize a loading/closing hoist. Bucket Position Indication provides the operator with the open/close status of the bucket when it is not visible.
  • Load Sharing - Allows two or more mechanically coupled motors to be controlled in a master/slave torque control fashion.
  • Load Check II - Continuously detects overload conditions and monitors hook load, providing increased productivity by no longer pausing for tests unless rated capacity is approached.
  • Safe Torque Off - Provides a redundant hardware safety circuit that guarantees motor and brake power are removed when an E-STOP switch or safety controller opens the drive input, eliminating the need for external disconnects.
  • Adaptive Ultra-Lift - Allows over-speeding with light loads or empty hook by monitoring motor torque and adjusting motor speed to operate at peak performance.
  • X-Press Programming - Automatically configures several commonly used parameters and features when a control method, motion, or speed reference is selected.
  • Option Cards - Provides the drive flexibility that is needed with expandable AC, DC digital and analog input and output option cards.
  • Impulse●Link Diagnostic System - Provides easy drive parameter management on your PC. Can communicate with up to 31 drives locally or wirelessly, allowing drive diagnostics, monitoring, and programming.
  • Reliability - Hardware and software are designed and extensively tested specifically for the operating conditions seen in overhead material handling applications.
  • New Power Module - Withstands four times more thermal cycles than previous generations.
  • Preventative Maintenance Monitors - Provides the feedback you need to proactively schedule maintenance and minimize downtime.
  • Energy Engineered - Designed to efficiently utilize available power, reducing energy costs for you and your customers.
  • CMAA Crane Class A to F Service.
  • Certifications: UL, cUL, CSA, RoHs; CE available with filters.

Drive is fully tested prior to shipment.

Warranty 3-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
