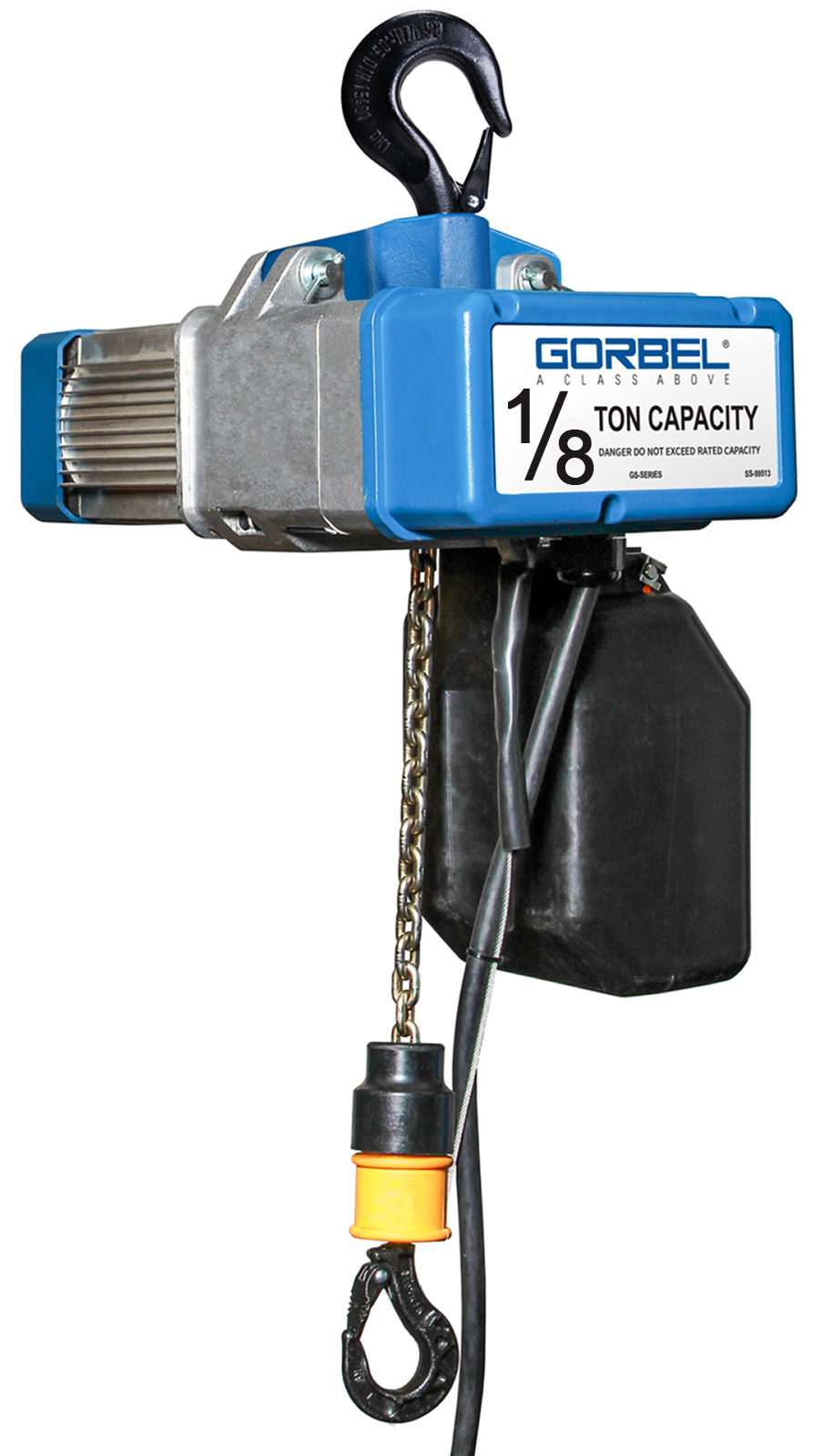

1/8-Ton Gorbel GS Electric Chain Hoist, Three Phase, GECH-1/8

Manufacturer: Gorbel
Availability: In stock
SKU: GECH-1/8
Lead Time (subject to change, call to verify): typically ships in 7-10 business days
*
*
*
*
*
*
*
$2,015.06
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Product Specifications
Attribute nameAttribute value
Features
  • Capacity: 0.125 ton
  • Manufacturers Part Number: GECH-1/8
  • Approximate Weight: 42 lbs. (10 ft. lift with top hook)
  • Voltage: 230-3-60 or 460-3-60 VAC (three phase)
  • Reeving/Chain Falls: 1
  • Motor HP: 0.40 single speed / 0.52 two-speed
  • Headroom: 15.75 in.
  • ASME Duty Rating: H4
  • Max Number of Starts per Hour: 300
  • Max On Time (Min/Hr): 30
  • Environment Rating: Indoor/Outdoor
  • Pendant Control: NEMA 4X - rocker switch up/down control with E-Stop.
  • Totally enclosed, fan cooled motor. Low voltage, 24V transformer fused for operator protection.
  • Modular brake and clutch externally mounted for easy service. Standard DC brake for long service life.
  • Cased hardened gears provide quiet, smooth operation, and longevity. All components from gears to case are fabricated at a single location for superior quality control.
  • Modular control package features standard IEC contactors as well as upper and lower limit switches.
  • Consistent rectifier throughout the hoist offering and voltage range minimizes spare parts inventory.
  • Tested in accordance with ASME as well as FEM/ISO.
  • Ideal for both high production environments and those applications requiring only periodic lifting and positioning.
  • The compact body design makes it the perfect dimension for any work area and makes it an ideal hoist for low headroom applications. Plus, the smaller size lends itself to easy installation and relocation.
Warranty2-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of OriginGermany
