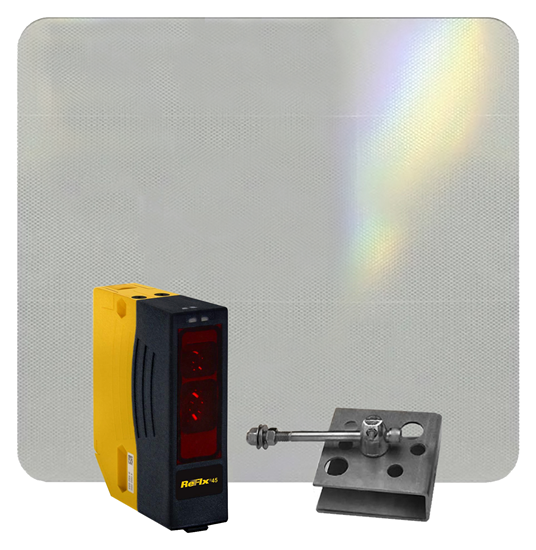

ReFlx 45 Crane Anti-Collision System, One Event, Hinged Bracket with Adhesive Reflector, REFLX45-ADH

Manufacturer: Magnetek
SKU: REFLX45-ADH
Manufacturer part number: REFLX45-ADH
Lead Time: typically ships in 2-3 business days
*
*
*
$255.00
Product Specifications
Features
  • Sensor/Light Source: Single Stop Action, Polarized Retro-Reflective, LED
  • Operating Range: 3-45 foot detection range* (*Runway length may be greater than detection range)
  • Input Voltage: 24-240VAC or 12-240VDC
  • Power Consumption: 3.5 VA
  • Operating Mode Selection: DIP-switches
  • Signal Output: Relay, Form C rated at 250V AC/DC, 2A max
  • IP67 rating for indoor applications only (This system may not operate properly in direct sunlight or inclement weather conditions).
  • Two green LEDs are located on the top of the sensor: one in the front, and the other in the back. They indicate that the sensor is powered on. Two yellow LEDs next to the power indicators specify the object is within the sensing range.
  • This system is designed for use with all types of cranes including cranes with adjustable frequency drives, soft starters, or contactor controls. All electronic components are built into one housing, enabling easy installation on an overhead crane.
Warranty1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
