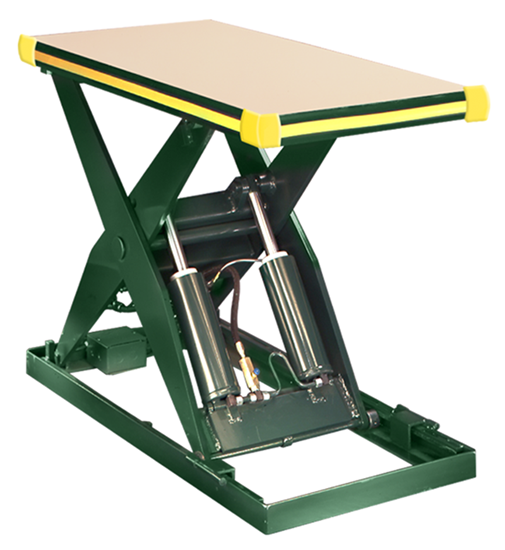

Southworth LS4-24 Backsaver Lift Table, Capacity 4,000 lbs

Manufacturer: Southworth
Availability: In stock
SKU: LS4-24
Manufacturer part number: LS4-24
Lead Time (subject to change, call to verify): typically ships in 13-16 business days
*
*
*
    $5,700.00
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Documents, Drawings, and Manuals
    Product Specifications
    Attribute nameAttribute value
    Features
    • Vertical Travel: 24 in.
    • Max. Height: 30.75 in.
    • Min. Height: 6.75 in.
    • Time to Max. Height: 28 sec.
    • Approx. Ship Weight: 550 lbs.
    • Rugged and reliable lift table for work positioning, pallet loading, and a wide range of other applications.
    • With extra width at the pivot point, contoured legs combine great strength with lower collapsed height.
    • Comfort edge design with no sharp corners on table top and bright safety yellow stripe for high visibility.
    • All pivot points have hardened pins that operate in lubricated-for-life, virtually maintenance-free brushings.
    • Heavy-duty torque tubes minimize platform twisting and deflection for high degree of rigidity and stability.
    • Heavy-duty hose with burst strength 600% greater than the hydraulic operating pressure.
    • Clear plastic return line from cylinder rod bearing to tank gives visual indication of need to repack cylinder and prevents fluid spillage in the event of a bypass.
    • Low operating pressure extends the life of hydraulic components.
    • Chrome-plated piston rods are corrosion resistant, and cylinder walls are honed.
    • Pressure compensated flow control valve with lock out is preset and locked at 10 F.P.M. maximum lowering speed per ANSI Standard, MH29.1 where applicable.
    • Built-in safety chock prevents accidental lowering of table during maintenance.
    • Wear indicating rollers are captured in the base by means of retainers to prevent accidental separation or misalignment. (oversized width tabletops also include upper set of retainers)
    • Designed and manufactured to meet or exceed ANSI MH29.1 Safety Requirements for Industrial Scissor Lifts.
    Warranty2-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
