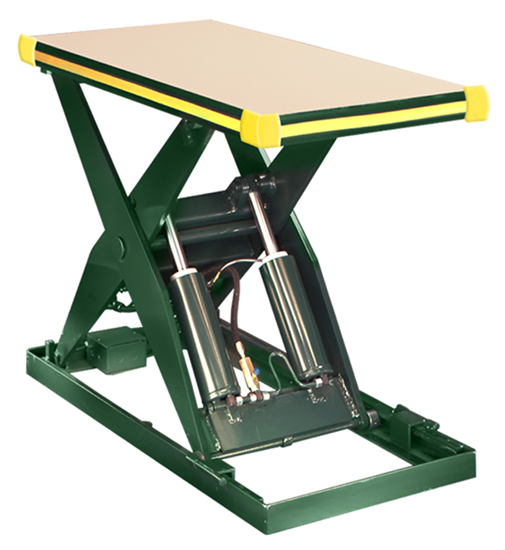

Southworth LS4-48W Backsaver Lift Table, Capacity 4,000 lbs

Manufacturer: Southworth

Availability: In stock

SKU: LS4-48W

Lead Time (subject to change, call to verify): typically ships in 13-16 business days

Standard Platform Size *

48 x 64 in. Platform

Voltage *

460-3-60 (three phase)

Lift Control *

For Customization Call 314-884-8884

$10,254.10

Qty:

Documents, Drawings, and Manuals

Brochure

Southworth Lift Tables Brochure

Brochure

Southworth LS-Series Lift Table Manual

Product Specifications

Attribute name	Attribute value
Features	Vertical Travel: 48 in. Max. Height: 55.25 in. Min. Height: 7.25 in. Time to Max. Height: 18 sec. Approx. Ship Weight: 1,400 lbs. Rugged and reliable lift table for work positioning, pallet loading, and a wide range of other applications. With extra width at the pivot point, contoured legs combine great strength with lower collapsed height. Comfort edge design with no sharp corners on table top and bright safety yellow stripe for high visibility. All pivot points have hardened pins that operate in lubricated-for-life, virtually maintenance-free brushings. Heavy-duty torque tubes minimize platform twisting and deflection for high degree of rigidity and stability. Heavy-duty hose with burst strength 600% greater than the hydraulic operating pressure. Clear plastic return line from cylinder rod bearing to tank gives visual indication of need to repack cylinder and prevents fluid spillage in the event of a bypass. Low operating pressure extends the life of hydraulic components. Chrome-plated piston rods are corrosion resistant, and cylinder walls are honed. Pressure compensated flow control valve with lock out is preset and locked at 10 F.P.M. maximum lowering speed per ANSI Standard, MH29.1 where applicable. Built-in safety chock prevents accidental lowering of table during maintenance. Wear indicating rollers are captured in the base by means of retainers to prevent accidental separation or misalignment. (oversized width tabletops also include upper set of retainers) Designed and manufactured to meet or exceed ANSI MH29.1 Safety Requirements for Industrial Scissor Lifts.
Warranty	2-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
