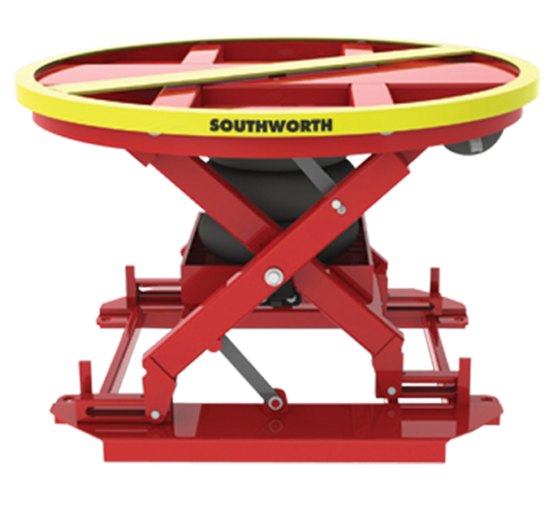

Southworth PalletPal 360 Air Actuated Level Loader, Capacity 4,500 lbs

Manufacturer: Southworth
SKU: PalletPal 360 Air
Manufacturer part number: PalletPal 360 Air
Lead Time: typically ships in 10-13 business days
*
*
$2,723.00
Documents, Drawings, and Manuals
Product Specifications
Features
  • Capacity: 300 lbs. - 4,500 lbs.
  • Compressed Height: 9 1/2 in.
  • Extended Height: 27 3/4 in.
  • Approx. Shipping Weight: 435 lbs.
  • Pressure adjustable airbag works in conjunction with a permanent spring.
  • Air bag fully protected in down position.
  • Air outlet and gauge is fully guarded and easily accessible.
  • Rugged lift table type frame for loads up to 4,500 lbs.
  • Low-friction bearing supported turntable for near-side loading and unloading.
  • Fork pockets for relocation by fork truck and wide base for free standing stability.
  • Optional phenolic frame cover lays under rotator ring with foam spacers.
  • Optional 12 gauge solid steel rotator ring disc cover assists in applications involving pallets with minor damage.
  • Optional leveling feet allow use on sloping or uneven floors with structural tubing mounted under base for reinforcement.
  • Optional semi-live skid kit includes two steel fixed wheels on one end of base frame and skid spotter with two steel wheels and pull plate on opposite end.
  • Optional fork pocket caster kit includes four swivel and four rigid texite casters with foot operated floor lock. (Fork pockets are not usable with caster option)
Warranty2-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
