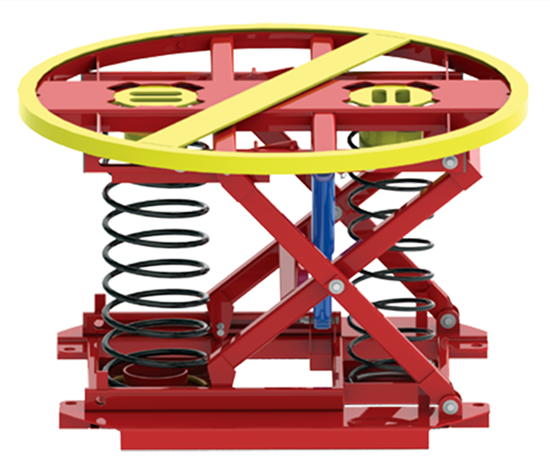

Southworth PalletPal 360 Spring Actuated Level Loader, Capacity 4,500 lbs

Manufacturer: Southworth

SKU: PalletPal 360 Spring

Manufacturer part number: PalletPal 360 Spring

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

Platform Size *

Base Options *

Table Accessories

$2,875.00

Qty:

Documents, Drawings, and Manuals

Brochure

Southworth PalletPal 360 Brochure

Guide

PalletPal Spring Selector Guide

Data Sheet

PalletPal 360 Data Sheet

Product Specifications

Attribute name	Attribute value
Features	Capacity: 400 - 4,500 lbs. Compressed Height: 9 1/2 in. Extended Height: 28 in. Approx. Shipping Weight: 460 lbs. Heavy-duty springs calibrated to bring pallet to most convenient loading and unloading height. (SEE SPRING SELECTOR GUIDE) Rugged tubular steel frame for loads up to 4,500 lbs. Proven linkage design maintains level under uneven loading. Dampener provides smooth, gradual raising and lowering action without overshoot or spring bounce. Low-friction bearing supported turntable for near-side loading and unloading. Fork pockets for relocation by fork truck and wide base for free standing stability. Optional phenolic frame cover lays under rotator ring with foam spacers. Optional 12 gauge solid steel rotator ring disc cover assists in applications involving pallets with minor damage. Optional leveling feet allow use on sloping or uneven floors with structural tubing mounted under base for reinforcement. Optional semi-live skid kit includes two steel fixed wheels on one end of base frame and skid spotter with two steel wheels and pull plate on opposite end. Optional fork pocket caster kit includes four swivel and four rigid texite casters with foot operated floor lock. (Fork pockets are not usable with caster option)
Warranty	2-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)

Product Tags
