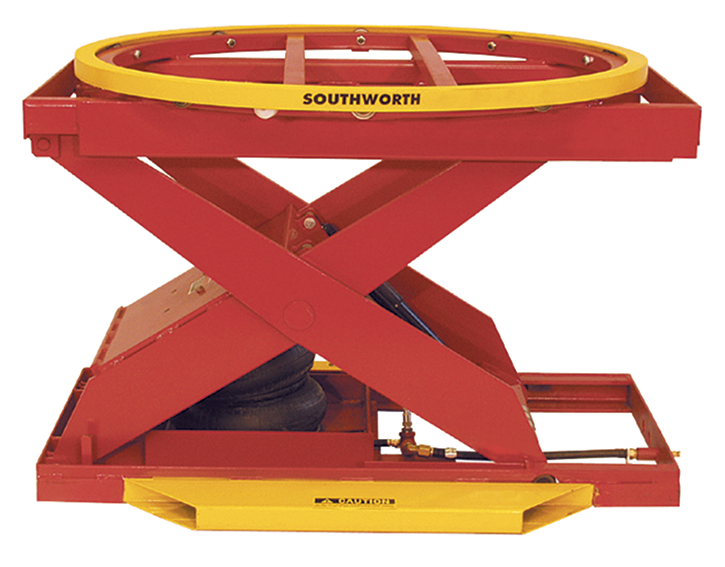

Southworth PalletPal PPA2-24 Powered-Pneumatic Level Loader, Capacity 2,000 lbs

Manufacturer: Southworth
SKU: PPA2-24
Manufacturer part number: PPA2-24
Lead Time: typically ships in 10-13 business days
Documents, Drawings, and Manuals
Product Specifications
  • Capacity: 2,000 lbs. *
  • Compressed Height: 9 1/2 in.
  • Extended Height: 33 1/2 in.
  • Approx. Shipping Weight: 640 lbs.
  • Powered by hydraulic unit with standard 80 PSI power.
  • Gives operator total control for help when loads, weights, pallet sizes, or product dimensions vary greatly.
  • Foot control allows operator to adjust load to any position within working range of the unit so it's at the most comfortable height.
  • Manual turntable top for near-side loading and unloading.
  • Built-in fork pockets provide both ease of portability and additional stability.
  • Optional bellows accordion skirting wraps entire unit to keep underneath free from debris.
  • Optional solid disc cover is ideal for damaged pallets or small/odd sized pallets or skids.

* This is not a lifting capacity. These airbag actuated machines are dedicated to pallet positioning applications.
   The capacity denotes the maximum weight of the fully loaded pallet that is appropriate for each model.

Warranty2-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
