Upenders, Inverters, and Inspection Station Videos

Titanium Sheet Pitch, Flip and Transfer Tool

Titanium Sheet Pitch, Flip and Transfer Tool

We engineered, designed and manufactured this tool for pitching, flipping and transferring large titanium sheets. The sheets are flipped by pitching the metal vertical and transferring it to the other conveyor.

Grip and Pitch Inspection Station for Automotive Parts

Grip and Pitch Inspection Station for Automotive Parts

We engineered, designed and manufactured an air over oil pneumatic station for griping, pitching and inspecting metal automotive parts. The parts are set in place by a robotic arm and the station has an optical sensor that allows the robot to know if the grip jaws are in the correct position.

Inspection Station for Automotive Parts

Inspection Station for Automotive Parts

Ergonomic Partners custom designed this inspection station for automotive parts. The station grips the parts and the operator can lower the built-in conveyor and then proceed with a 360-degree inspection. Once the operator is finished they can raise the conveyor rollers to roll the part to the next station.

Manual Work Positioner for 400 lb Loads

Manual Work Positioner for 400 lb Loads

This work positioning tool provides the operator with full flexibility to move items in any position, with full 360 degree rotation, adjustable height and tilt.

Motorized Work Positioner for 400 lb Loads

Motorized Work Positioner for 400 lb Loads

This motorized compact work positioner has bi-directional turntable rotation, variable speed, tilt and work height adjustment.

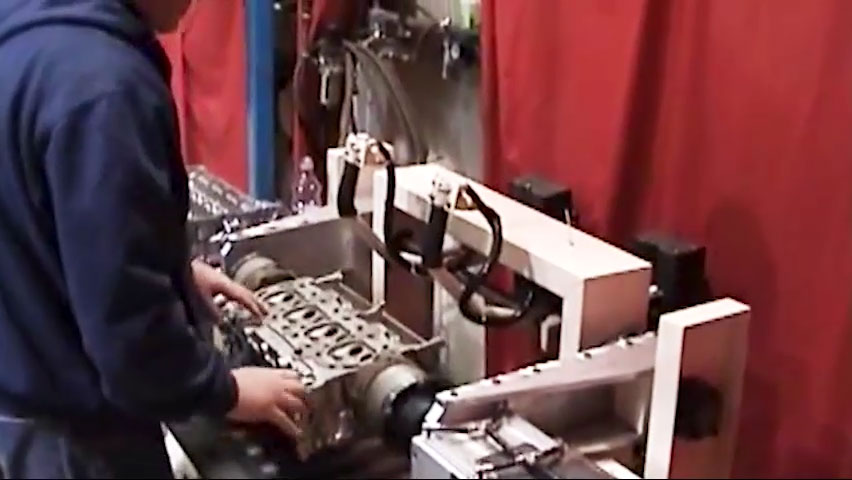

Automotive Inspection Station for Engine Blocks

Automotive Inspection Station for Engine Blocks Video

Pneumatic Gripper integrated with roller conveyor with rotation ability for inspection.

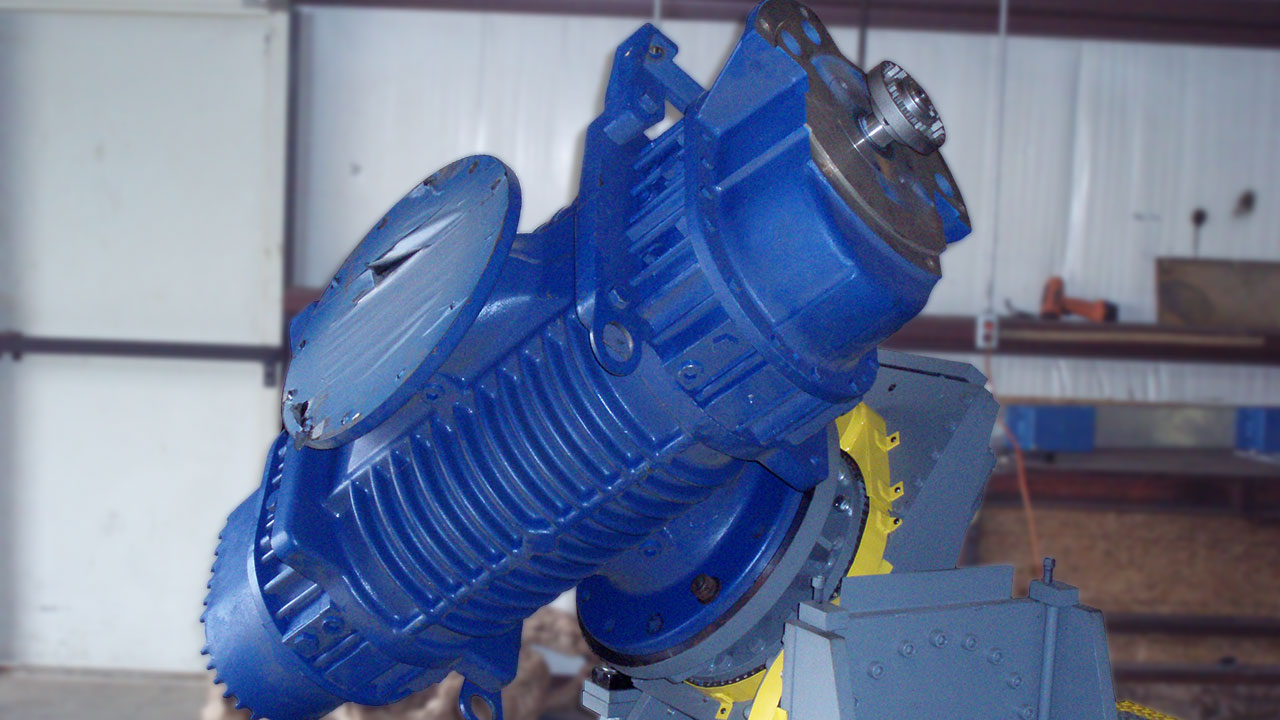

Pump Inspection Inverter

Pump Inspection Inverter Video

Large Inverter with variable speed rotation to rotate a 2 ton pump in three axis of rotation.

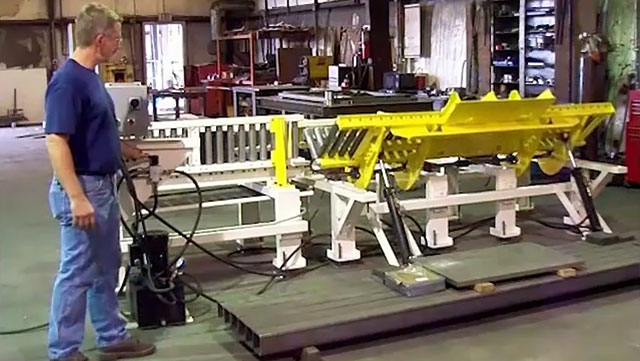

800 lb Part Downenders

800 lb Part Downenders

Video of a 800 lb part on a custom hydraulic downender.

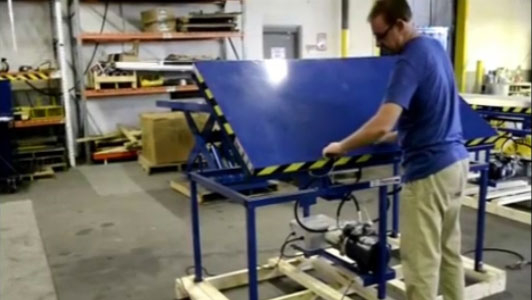

Ergonomic Tilting and Rotating Fixture Table

Ergonomic Tilting and Rotating Fixture Table

Ergomoice fixture table that rotates and tilts.

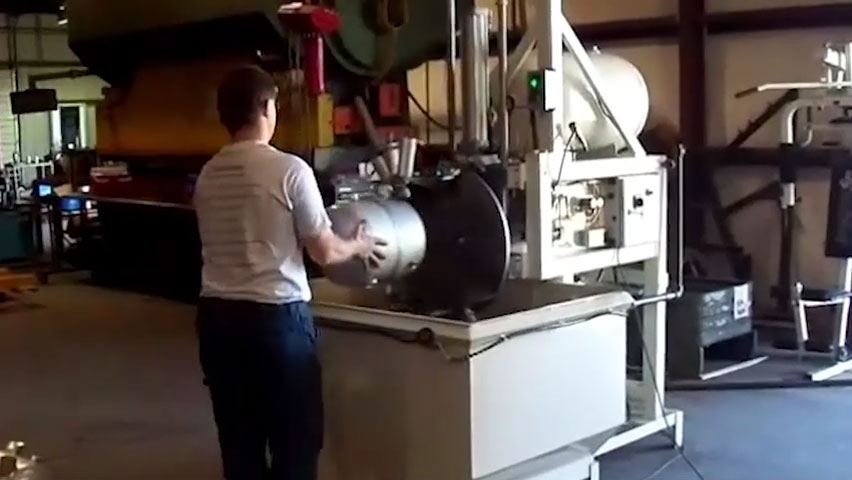

Tank Leak Test Station

Tank Leak Test Station

Video of a test station for inspecting tanks for leaks.
