Vacuum Gripper Tools Videos

Ergonomic Partners engineers and fabricators designed and built this custom tool to grip and lift fuel tanks for recreational watercraft. The tool provides a safer, more efficient, and cost-saving method for lifting and handling fuel tanks. The tool features a steel and aluminum powder-coated frame, four air-saving vacuum pumps, adjustable pneumatic powered grip arms with four vacuum gripper cups, vacuum indicator gauge, unique high arching handlebars that allow lift clearance for 6.5-foot hulls, grip/release with interlocking common button controls, momentary grip arm lever controls, up/down, E-stop, and float mode controls, with an always-on OLED high-resolution display on the handle. The tool is suspended from an articulating Gorbel Easy Arm jib crane with G-Force Smart Hoist and uses two anti-drop safety systems, a common button and our gripper safety circuit preventing operators from releasing the tanks in mid-air.

1

Our Ergonomic Partners teams developed and built this custom vacuum liter with interchangeable heads for lifting different size magnetic rolls. Our tool allowed our customer to improve safety, efficiency, and overall well-being of their employees, while minimizing product damage. The tools frame is made of lightweight and sturdy aluminum and high-strength steel, and features a vacuum indicator gauge, quick disconnect system with two swappable vacuum gripper heads using air saving vacuum pumps, ergonomic zero-gravity floating handlebar with integrated grip / release with interlocking common button controls, E-stop, float mode control, and proportional up / down controls. The tool is suspended from a Gorbel Easy Arm and G-Force Smart Hoist using two anti-drop safety systems, a common button and our gripper safety circuit preventing operators from accidentally releasing the rolls in mid-air.

Our Ergonomic Partners teams developed and built this custom vacuum liter for lifting and pitching large 100-pound angled metal sheets. Our tool allowed our customer to reduce labor costs and processing times, increase throughput, reduce damage to sheets, minimize downtime due to worker fatigue, optimize material flows in their production lines, and enable safe and precise handling of sheets. The tools frame is made of lightweight and sturdy aluminum and high-strength steel, and features a vacuum indicator gauge, four 150mm high-capacity vacuum cups with air saving pumps, ergonomic zero-gravity floating handlebar with integrated grip / release with interlocking common button controls, 90-degree momentary pitch with up / down lever control, E-stop, float mode control, and proportional up / down controls. The tool is suspended from a Gorbel Easy Arm and G-Force Smart Hoist using two anti-drop safety systems a common button and our gripper safety circuit preventing operators from accidentally releasing the sheets in mid-air.

Our Ergonomic Partners team automated this molded cement handling and flashing trimming process; that increased worker safety, efficiency, and product consistency. This unique tool has a robust powder coated steel frame construction with pinch guard shield, zero gravity floating handle, grip/release with interlocking common button controls, flash chop controls with interlocking common button controls, proportional up/down controls with float mode, and uses UHMW (Delrin) guides that are specifically designed to precisely align, and lock fit into the cement molds valleys. A series of flat concave vacuum suction cups securely grip and lift the molds while the integrated automatic flashing trimmer ensures that the final product meets quality standards by removing the unwanted material. The tool features our gripper safety circuit and common buttons to prevent mid-air drops and is suspended from a Gorbel Easy Arm with the Gorbel G-Force smart hoist.

2

We designed and fabricated this custom vacuum tool to grip, lift, pivot, rotate, and pitch different size and orientation windows weighing up to 450-pounds. The tool features a steel and aluminum powder coated frame, dynamic leveling center of gravity suspension point system, vacuum grip indicator gauge, adjustable air saving vacuum cups, 90-degree vacuum cup rotation system, and vertical handlebar adjustment with 30 inches of travel. The left-hand controls include vacuum grip /release control handle with underside trigger for the handlebar vertical travel. The right-hand controls house the up / down handle with float mode, G-Force menu controls, handlebar vertical travel underside trigger, and thumb-controlled safety common button. In the center of the handlebar are controls for the momentary pitch and momentary center of gravity controls. The tool prevents operators from unintentionally dropping the windows in mid-air by using two anti-drop safety prevention systems. The first system is a common button used with the grip release controls and the second system is our gripper safety circuit that automatically senses the weight of the windows gripped by the tool.

We built and designed this custom manipulator arm with vacuum tool end effector to grip, lift, pitch, and rotate large vehicle roof liners. Our ergonomic solution provided our customer with reduced labor costs, improved safety, efficiency, productivity, and cost-effectiveness. The arm features: vertical limit stops, portable base with forklift pockets, leveling feet, 360-degree rotation with pneumatic brake on the mast, 330-degree rotation with pneumatic brake on the secondary arm, and 360-degree non-continuous rotation with friction brake on the end effector tool. The vacuum tool features up/down controls, grip/release controls with common button, 90-degree pitch control, 90-degree rotation control, arm/tool brake deadman trigger controls, and vacuum indicator gauge.

This vacuum lifting device was designed to grip, lift, and stack boxes up to 9-feet. The tool features an ergonomic 48-inch dual stage telescoping adjustable handle, four 150mm bellows vacuum cups, steel and aluminum powder coated frame, up/down-grip/release controls, vacuum grip gauge, and our custom Gripper Safety Circuit preventing the operator from dropping the boxes in mid-air. The tool is integrated with an Easy Arm intelligent jib crane allowing operators to easily position the boxes.

3

This custom vacuum grip and lift tool allows operators to move large Bus windshields. The tool features: three air saving vacuum cups, vacuum grip indicator gauge, dynamic leveling suspension point system, swappable and adjustable ergonomic soft grip handles with integrated up/down and float mode controls, interlocking grip/release controls with common button, center of gravity shift controls, and our gripper safety circuit to prevent accidental release of the windshields in midair. The tool is suspended from a Gorbel Easy Arm (smart hoist and jib crane).

Our ergonomic team designed and built this custom vacuum tool to simultaneously grip and lift four 95-pound boxes for palletizing. The tool features a powder coated steel and aluminum frame, 16 vacuum cups (4 per box), Delrin vacuum cup alignment and locator guides, vacuum indicator gauge, ergonomic high/low handlebars with 18-inches of vertical travel, grip/release controls, proportional up/down controls, and float mode. The tool is integrated with a Gorbel Easy Arm and G-Force Smart Hoist using our gripper safety circuit to prevent accidental release of the boxes in mid-air.

Our team engineered, designed, and built this vacuum tool to grip, lift, and 180-degree rotate different size 225-pound electrical panels. The tool features a steel and aluminum powder coated frame, air saving vacuum pumps, vacuum grip gauge, extend and retract controls, with a momentary 3 position rotation switch, integrated two speed hoist up/down controls on the right handle and grip/release controls on the left handle. The tool is suspended from a Gorbel 2-speed hoist and uses our gripper safety circuit preventing accidental release of the panels in mid-air.

4

We built this tool for the Tier 1 Automotive industry. The unique feature of this tool is the missing operator controls. The tool does not have any buttons, levers, or switches for operation or control. The tool automatically senses the forces placed on it by the operators and once the weight is off the tool it will automatically adjust the vacuum cups and turn on the vacuum grip pressure for lifting the tote boxes. The tool features: air saving vacuum cups, force sensitive controls, zero gravity float mode, and a gripper safety circuit to prevent accidental release of the tote boxes in midair. The tool is integrated with a Gorbel Easy Arm articulating jib crane paired with the iQ2 smart lifting device from Gorbel.

Ergonomic Partners designed and installed this custom vacuum tube lifter solution for palletizing 55-pound 5-gallon buckets. The customer previously used five rotating operators per line, manually lifting, shrink wrapping, labeling, and palletizing. They experienced severe personnel turnover, work call-offs, operator injuries, and each line only achieved 40% to 60% capacity. Ergonomic Partners teams installed two Gorbel Workstation Jib Cranes with Anver Triple Pail Vacuum Handling Systems at the end of each conveyor line. An automatic photo eye controlled, pail positioning system at the end of each conveyor line separates, spins, orients the handles, aligns the product labels for clear reading from all four sides of the pallet, and positions the pails for consistent and easy palletizing by the vacuum lifting systems. Each line now only requires two operators for lifting, shrink wrapping, labeling, and palletizes the full system capacity of 1,430 pails per single shift. Operator injuries and call-off days are no longer an issue, and the palletizing production is completed in three days allowing the operators to be used elsewhere in the plant.

Our Ergonomic Partners team designed and built this custom vacuum lifter for handling 90-pound, 9-foot long, awkward and bulky extruded aluminum parts. The vacuum lifting tool features a steel and aluminum powder coated frame, vacuum grip indicator gauge, ten air saving vacuum pumps/cups, and zero-gravity ergonomic floating handlebars with soft grip handles. Integrated operator controls include a common button used in conjunction with the grip/release controls, proportional up/down controls, E-stop, float mode, and an always on OLED high resolution display on the handle. The tool is suspended from a Gorbel Easy Arm and G-Force Smart Hoist using two anti-drop safety systems a common button and our gripper safety circuit preventing operators from accidentally releasing the parts in mid-air.

5

Our ergonomic team designed and built this custom tool to grip and lift large commercial refrigeration panels. The tool features a steel and aluminum powder coated frame, eight vacuum cups installed on four adjustable cup assemblies, an independent safety system for mid-air drop prevention using our gripper safety circuit, and ergonomic floating handlebars installed on a linear rodless vertical rail. The operator has grip/release controls, up/down controls, and liner rail toggle lever controls, and two independent vacuum grip indicators for each vacuum system circuit. The tool is suspended from a Harrington variable speed hoist and overhead crane.

Our Ergonomic Partners teams of engineers and fabricators designed and built this tool to grip, and 90-degree rotate two different parts using a quick interchangeable vacuum grip head. The custom tool is integrated with a Gorbel Easy Arm and Gorbel G-Force smart hoist and features a steel and aluminum powder coated frame, interchangeable vacuum heads via a lock pin and quick-disconnect pneumatic fittings, grip/release controls, 90-degree rotation toggle button controls, red/green vacuum pressure indicator, up/down controls, and our gripper safety circuit preventing operators from accidentally releasing the parts in mid-air.

This tool is designed to grip large refrigeration cabinets with just a single suction cup. The tool uses an ergonomic high/low force sensing handle with no up/down controls allowing for smaller coolers to be lifted and placed into larger cabinets. The tool is integrated with a Gorbel Easy Arm intelligent hoist and features include powder coated steel and aluminum frame, vacuum grip gauge, float mode, vacuum saving suction cups, high/low grip and release controls with a common button to prevent accidental release of the cabinets in mid-air.

6

This custom vacuum tool is designed for lifting different width refrigeration cabinets. Width adjustment of the suction cups uses a momentary switch integrated with a custom rack and pinion system. Other features include powder coated steel and aluminum frame, vacuum grip gauge, vacuum saving suction cups, high/low ergonomic handle controls with an air powered rodless cylinder, and our gripper safety circuit preventing accidental release of the cabinets in mid-air.

This vacuum grip tool lifts refrigeration panels from a conveyor, rotates the part 180 degrees, and then allows operators set them onto cabinets. The tool features a steel and aluminum powder coated frame, vacuum grip guage, ergonomic floating handle bar, and grip/release with proportional up/down controls. The tool is integrated with a variable speed hoist and is equipped with our custom gripper safety circuit and common button to prevent operators from accidentally releasing the panels in mid-air.

This vacuum lifting device was designed to grip, lift, rotate and pitch large utility transformer panels. The tool features an ergonomic floating handle, pivoting and quick lever adjustable vacuum cups, removable pendant handle, float mode, and our custom Gripper Safety Circuit preventing the operator from dropping the panels in mid-air. The tool is integrated with an Easy Arm articulating jib crane allowing operators to easily and accurately position the panels.

7

This custom vacuum gripper tool builds large Gaylord boxes. The box builder tool features a steel and aluminum powder coated frame, floating handle, custom brakes for the articulating jib crane to prevent movement of the crane, pitches 90-degrees, rotates 180-degress, float mode, momentary proportional up/down controls and grip/release controls. The tool is integrated with a Gorbel Easy Arm and equipped with our Gripper Safety Circuit preventing operators from accidentally releasing the boxes in mid-air.

This vacuum lifting device was designed to grip, lift and stack pallets up to 8-feet. The tool features an ergonomic 36-inch dual stage telescoping adjustable handle, dual 700mm vacuum cups, steel and aluminum powder coated frame, up/down-grip/release controls, vacuum grip gauges, and our custom Gripper Safety Circuit preventing the operator from dropping the pallets in mid-air. The tool is integrated with an Easy Arm intelligent jib crane allowing operators to easily position the pallets.

With a maximum lifting capacity of 315 pounds this vacuum lifter automatically grips, lifts and precisely positions siding using optical sensors, limit switches, VFD’s and PLC’s. The three unique vacuum cups grip an entire layer of different dimension and shape siding. The vertical movement uses linear actuators with linear guides and rails to handle offset loads. The systems patented track crane uses, inverter duty motorized end trucks with encoder feedback controlled by variable frequency drives. The system has teachable controller with a PLC and can be programmed using the push button station.

8

We built this tool for the transportation industry to grip and lift bus windows. The tool features: air spring automatic adjusting air saving vacuum cups (allowing the tool to grip curved or flat windows), ergonomic floating handle with up/down and grip/release controls, vacuum gage, automatic center-of-gravity adjustment to keep the tool/windows level, zero gravity float mode, and a gripper safety circuit to prevent accidental release of the windows in midair. The tool is integrated with an articulating jib crane with a smart lifting device called the Easy Arm.

This vacuum tool grips, lifts, pitches, and rotates various size and weight aircraft parts. The tool features: individually movable vacuum cups, 90-degree pitch, rotation brake, automatic height adjusting vacuum cups and separate controls for shifting the center of gravity allowing tilt control of the parts. The vacuum tool is integrated with a Gorbel Easy Arm that has an intelligent hoist with "float mode" allowing the operator to set the parts in a zero-gravity mode. The tool is ultra-safe due to our gripper safety circuit which prevents accidental release of the parts in midair; and each vacuum cup has its own pump, gauge and alarm. With this isolated safety system the operator will be notified if a single pump or vacuum cup is fails.

This custom vacuum tool is designed for lifting sheet metal used in manufacturing of electrical enclosures. The metal sheets have various sizes, material types, and can weigh up to 175 pounds. The tool features an air actuated guide rail system allowing operators to adjust the span of the vacuum cups, controlled using a momentary control lever on the handle. Other features include powder coated steel and aluminum frame, vacuum grip gauge, vacuum saving suction cups, ergonomic proportional up/down controls on the right handle and grip/release controls on the left handle. The tool is suspended from a Gorbel Easy Arm (smart hoist and jib crane) and uses our gripper safety circuit preventing accidental release of the sheets in mid-air.

9

This vacuum lifting tool was designed to grip, lift, pitch, and rotate sheet metal panels. The tool features momentary 90-degree pitch controls, manual 90-degree rotation with brake, vacuum saving pump, vacuum gauge, float mode, grip/release controls, and our anti-drop circuit preventing operators from dropping the panels in mid-air. The tool is integrated with an Easy Arm articulating jib crane allowing operators to position the panels easily and accurately.

This ergonomic vacuum grip and lift tool allows operators to quickly and easily reposition various size HVAC doors. The tool features: two stationary air saving vacuum cups, four adjustable outer vacuum cups, vacuum grip indicator gauge, ergonomic soft grip handles with integrated hoist up/down controls and grip/release controls with our gripper safety circuit to prevent accidental release of the doors in midair. The tool is suspended from a Harrington Electric chain hoist and overhead crane.

Ergonomic Partners designed and fabricated this custom vacuum tool to grip, lift, and pitch 90-pound glass doors. The tool features a steel and aluminum powder coated frame, dynamic leveling center of gravity suspension point system, vacuum grip indicator gauge, and four air saving vacuum pumps with cups. The ergonomic handlebars include left-hand vacuum grip/release with right hand thumb-controlled safety common button, up/down controls with float mode, G-Force menu controls, momentary pitch controls, and momentary center of gravity controls. The tool is integrated with a Gorbel Easy Arm and G-Force Smart Hoist using two anti-drop safety prevention systems; our gripper safety circuit and grip/release common button that prevents accidental release of the doors in mid-air.

10

This tool uses a combination of vacuum and pneumatic grip forces to pick up power systems. A dual grip combination was chosen to make sure the power systems were not crushed buy the pneumatic grip forces alone. The tool features a steel and aluminum powder coated frame, ergonomic floating handle bar, and grip/release with proportional up/down controls. The tool is integrated with a zero-gravity articulating arm and is equipped with our custom gripper safety circuit to prevent operators from accidentally releasing the parts in mid-air.

Ergonomic Partners designed and built this custom vacuum lifter for carbon fiber aerospace panels. The lifter can be operated from a hand-held remote or by hand. It lifts and rotates the panels 90 degrees and can lift the panel from the concave or convex sides. The vacuum lifter tool also features our custom Gripper Safety Circuit preventing the operator from accidentally pressing the release button and dropping the panel in mid-air.

This custom vacuum tool grips and lifts round pipe. The tool is integrated with a CM 2-speed hoist and Gorbel Workstation Crane. The tool features four oval vacuum saving cups, an ergonomic floating handle, up/down, grip/release controls, vacuum gauge, and our gripper safety circuit preventing release of the parts in midair.

11

The customer was currently struggling to lift the awkward triple wall corrugated boxes. They were using two people to assist with the lifting and taping of the boxes. This allows one operator to perform the task faster while eliminating the risk of injury.

This vacuum lifting tool was designed for large flexible and porous boxes. The tool grips and rotates the boxes from horizontal to upright position which allows the boxes to placed into a vertical rack.

Suspended by a Gorbel Easy Arm this custom tool system lifts various types of fiberglass boat consoles. Our interchangeable quick disconnect end effector design allows this tool to lift consoles with a hook or vacuum cups. The tool features up/down, E-stop, and grip release controls, vacuum gauge, air saving vacuum cups, float mode, and our custom Gripper Safety Circuit preventing the operator from accidentally pressing the release button and dropping the consoles in mid-air.

12

Custom 10 Cup Vacuum Lifter was designed to lift and rotate up to 300 pound sheets of plywood. The tool is supported from a VFD Lodestar Hoist and is powered by venturi vacuum. Due to the porous nature of the product several cups were needed in order to overcome the vacuum losses.

This tool is designed to lift up to 100 pound boxes from a conveyor and palletize them for shipment. Due to the random nature of the packaging, the vacuum cups are on a powered pneumatic adjustment.

Designed to lift and move pails and boxes safely, quickly, and efficiently this vacuum gripper tool is the ideal solution. The tool features a steel and aluminum powder coated frame, vacuum indicator gauge, one touch grip/release with up/down controls, interchangeable end effector vacuum tools with a quick release pin to easily swap between the pail lifter or box lifter and uses our gripper safety circuit for mid-air drop prevention. The tool is suspended from a two-speed Gorbel chain hoist and Gorbel Workstation Bridge Crane.

13

Designed for the transportation industry; this vacuum lifting tool grips and lifts porous parts. The tool features adjustable grip/release and proportional up/down controls, float mode, and adjustable vacuum cups. The tool is integrated with a Gorbel Easy Arm and our gripper safety circuit preventing accidental release of the parts in midair.

This custom vacuum tool grips and lifts different size, weight, and diameter rolls. The tool is integrated with a Gorbel Easy Arm and features air saving vacuum cups, powder coated steel frame, interchangeable vacuum cup assemblies with one assembly that has adjustable vacuum cups for different roll diameters, protective enclosure for pneumatic components, floating ergonomic soft grip handlebars with integrated proportional up/down controls and grip/release controls, float mode control, vacuum pressure indicator gauge, and our gripper safety circuit preventing release of the rolls in midair.

This vacuum lifting device is designed to grip, lift, and 90 degree pitch metal panels. The tool features proportionally adjustable pitch up/pitch down, and lift up/down controls. The vacuum lifting tool is integrated with an Easy Arm allowing the operator to quickly and precisely position the metal panels.

14

Designed to pick up and rotate 70 pound glass windshield doors for skid-steer front-end loaders. The vacuum lifting device is mounted to an Easy Arm™ intelligent articulating jib crane.

This vacuum grip tool picks up boxes from the side and has a custom high-low handle and zero gravity "float mode" control. The tool is integrated with the Gorbel Easy Arm and features Ergonomic Partners force sensing handle design and gripper safety circuit which prevents the operator from releasing the boxes in mid-air.

We designed and built this custom vacuum lifter for gripping, lifting, and pitching 30-pound glass windows. The tool features a powder coated steel and aluminum frame, adjustable concave non-marking vacuum cups, vacuum gauge, grip/release controls with common button, momentary pitch controls with 90-dgress of pitch, proportional up/down controls with LED display, E-stop, float mode, 360-degree continuous rotation, and our gripper safety circuit preventing operators from dropping the glass in mid-air. The tool is suspended by a Gorbel Easy Arm Intelligent (smart) hoist and jib crane.

15

This custom ergonomic vacuum gripper tool allows operators to transfer large sheet panels from pallets onto a shear. The tool features: ten air saving vacuum cups, vacuum grip indicator gauge, float mode control, proportional up/down with grip/release controls, zero gravity ergonomic floating handle, and our gripper safety circuit to prevent accidental release of the panels in midair. The tool is integrated with a Gorbel Easy Arm articulating jib crane paired with the Gorbel G-Force iQ2 smart lifting device.

This custom vacuum tool grips and lifts 40 pound stacks of shutters. The tool is integrated with a Gorbel Easy Arm and features three vacuum saving cups, an ergonomic floating handle with a interlocking release feature, and our gripper safety circuit preventing release of the shutters in midair.

Ergonomic Partners custom designed this vacuum gripper to lift and pitch various 60-pound sheet metal parts. The sheet metal handling tool is integrated with a Gorbel G-Force intelligent lifting hoist and features our custom Gripper Safety Circuit preventing the operator from accidentally pressing the release button and dropping the sheet metal parts in mid-air.

16

Vacuum lifter for stacking and palletizing boxes weighing up to 65 pounds and uses the JumboFlex along with a PIVOT PRO articulating jib crane.

This vacuum lifting device was designed to grip and lift large utility box truck beds. The tool features an ergonomic adjustable handle, automatic center of gravity shift, and our custom Gripper Safety Circuit preventing the operator from dropping the truck boxes in mid-air. The tool is integrated with a two speed hoist and workstation crane allowing operators to easily position the truck bed boxes.

This vacuum gripper is ideal for lifting boxes up to 50 pounds. The tool features left or right-hand grip controls and our gripper safety circuit to prevent operators from dropping the boxes in mid-air.

17

Vacuum Gripper system for loading 120 pound steel plates into a CNC machine. This tool was integrated with a 330 pound zero gravity arm.

This vacuum lifter has a special vacuum cup that allows picking up rough textured surfaces.

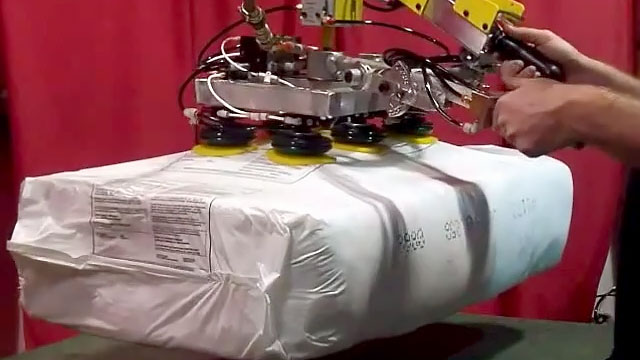

This lifting device picks up bags using two independent gripping methods. The operator can switch between the use of the vacuum gripper or the mechanical grip jaws to lift different types of bags. The tool was integrated with a pneumatic chain hoist and overhead crane.

18

Designed and built to grip and lift and metal containers. The gripper tool features our in-line ergonomic lift handle, and custom Gripper Safety Circuit preventing the operator from accidentally pressing the release button and dropping the converter in mid-air.

This vacuum lifting tool grips and lifts three-meter diving boards. The tool features an ergonomic floating handlebar with grip/release and proportional up/down controls. The vacuum tool is integrated with a CM variable speed hoist and our gripper safety circuit preventing accidental release of the parts in midair.

This vacuum lifting device was designed to grip, lift and pitch non-tempered glass panels. The tool features our ergonomic floating handle, momentary pitch, float mode and our custom Gripper Safety Circuit preventing the operator from dropping the glass in mid-air. The tool is integrated with an Easy Arm allowing operators to be extremely precise in the placement of the delicate glass.

19

Designed to lift and move 5-gallon buckets quickly and efficiently this vacuum gripper tool allows workers to safely move buckets around the work area. The tool features a steel and aluminum powder coated frame, vacuum indicator gauge, one touch grip/release controls, float mode controls, and uses our gripper safety circuit for mid-air drop prevention. The tool is suspended from an intelligent (smart), force sensing Gorbel G-Force Hoist integrated with the Gorbel Easy Arm articulating jib crane.

Ergonomic Partners designed and built this custom Vacuum Gripper to lift 150 pound boxes. The tool features our floating handles that allow the operator to lift the boxes in an ergonomic position throughout the tools vertical travel. The vacuum lifter tool also includes our custom Gripper Safety Circuit preventing the operator from accidentally pressing the release button and dropping the boxes in mid-air.

This vacuum tool grips and lifts aluminum extrusion parts. The tool features: a vacuum indicator gauge, delrin lined alignment pads, air saving vacuum cups, extended ergonomic zero-gravity floating handle with grip/release controls on the left and customized all metal 2-speed hoist controls on the right. The vacuum tool is suspended from a Gorbel 2-speed hoist and has our gripper safety circuit which prevents accidental release of the parts in midair.

20

This tool picks up and rotates boxes so the contents can be emptied into a hopper. The tool has a 90-degree gripper which prevents boxes from flexing during the emptying process. The vacuum grip tool is attached to an Easy Arm (smart articulating jib crane).

Custom Sheet Metal Vacuum Lifter to Handle 300lb parts. Sheet metal handling tool has multiple cylinders that allow for quick and easy adjustment of the vacuum cups with the push of a lever.

This vacuum lifting tool was designed to grip, lift, and rotate oven doors. The tool features a manual 90-degree rotation, vacuum saving pump, vacuum gauge, float mode with remote switch, grip/release controls, and our anti-drop circuit preventing operators from dropping the doors in mid-air. The tool is integrated with an Easy Arm articulating jib crane allowing operators to position the panels easily and accurately.

21

This custom vacuum tool grips and lifts medical cleaning devices. The tool is integrated with a Gorbel Easy Arm and features three vacuum saving cups, protective enclosure for pneumatic components, ergonomic soft grip handles with integrated up/down and grip/release controls, float mode control, vacuum pressure indicator gauge, and our gripper safety circuit preventing release of the equipment in midair.

This tool picks up and pitches doors for installation on to the body of refrigerators. The vacuum grip tool has two operator modes: zero gravity mode or ergonomic hand control mode. The operator can switch between zero gravity or hand control mode by the use of a single push button.

This vacuum lifting tool grips and lifts titanium parts. The tool features handles with grip/release and proportional up/down controls, float mode, and interchangeable vacuum grip heads. The tool is integrated with a Gorbel Easy Arm and our gripper safety circuit preventing accidental release of the parts in midair.

22

This vacuum lifting device is designed to grip and lift 400-pound sheets of metal. The tool features proportionally adjustable vacuum grippers for wide and long sheets. The vacuum lifting tool is integrated with a variable frequency drive CM LodeStar hoist allowing the operator to precisely position the heavy metal sheets.

This vacuum tool grips and lifts aluminum extrusion parts. The tool features: a vacuum indicator gauge, delrin lined alignment pads, air saving vacuum cups, ergonomic zero-gravity floating handle with grip/release controls on the left and customized all metal 2-speed hoist controls on the right. The vacuum tool is suspended from a Gorbel 2-speed hoist and has our gripper safety circuit which prevents accidental release of the parts in midair.

This vacuum lifting device is designed to grip, and lift, different size doors. The tool has a maximum capacity of 380 pounds and features proportionally adjustable up/down controls, automatic center of gravity shift, and adjustable vacuum cups. Our gripper safety circuit prevents the operator from accidentally releasing the doors in midair. The vacuum lifting tool is integrated with an Easy Arm allowing the operator to switch to zero-gravity “float mode” to position the door quickly and precisely.

23

This vacuum tool grips and lifts aluminum extrusion parts. The tool features: a vacuum indicator gauge, air saving vacuum cups, ergonomic handles with grip/release controls on the left and proportional up/down controls on the right and uses our gripper safety circuit preventing accidental release of the parts in midair. The vacuum tool is suspended from a Gorbel Easy Arm Smart Hoist and Jib Crane.

This tool is designed to grip, and 180-degree rotate 200-pound parts. The tool features an adjustable grip track for lifting small to large coolers without damage. It is integrated with a Gorbel Workstation Bridge Crane and Demag Chain Hoist. Other features include: powder coated steel and aluminum frame, vacuum grip gauge, anti-drop circuit (prevents accidental release in mid-air), vacuum saving suction cups, up/down, proportional 180-degree rotate, and gripper width controls.

This vacuum lifting tool grips, lifts and pitches large solar panels or boxes. The tool features our floating ergonomic handles with grip/release, proportional lift/pitch up/down controls, and float mode. The tool is integrated with a Gorbel Easy Arm and our custom gripper safety circuit preventing accidental release of the panels in midair.

24

We designed and built this vacuum lifter for installing skid steer windows. The lifter can be operated in zero gravity mode allowing the operator to position the windows by hand. The vacuum tool includes our custom Safety Circuit preventing the operator from accidentally pressing the release button and dropping the window in mid-air.

Top box vacuum gripper with multiple small cups for flexible boxes. Pneumatic cylinders quickly adjust the width of the cups to handle a wide range of box sizes and widths.

This ergonomic vacuum grip, lift, pitch, and rotate tool allows fabricators to install sheet metal panels quickly and easily. The tool features: four air saving vacuum cups, vacuum grip indicator gauge, float mode control, proportional up/down controls, momentary up/down pitch controls, manual rotation with locking detents at 90- degrees and 180-degrees, grip/release controls with interlocking common button, zero gravity ergonomic floating handle, and our gripper safety circuit to prevent accidental release of the panels in midair. The tool is integrated with a Gorbel Easy Arm articulating jib crane paired with the Gorbel G-Force iQ2 smart lifting device.

25

This custom vacuum tool grips, lifts, pitches and rotates 100-pound glass doors. Operators can position the doors using the proportional hand controls or by hand using float mode. The tool is suspended from a Gorbel Easy Arm and features our custom Gripper Safety Circuit preventing operators from accidentally pressing the release button and dropping the doors in mid-air.

This custom material handling solution was developed for lifting 800-pound building panels. It features twin Rigid Column lifters with custom vacuum attachments suspended from a 2 Ton Overhead Bridge Crane. Tri-State Equipment Company was able to design and fabricate the whole material handling system in-house, with EP developing the vacuum tools and TSOC producing the bridge crane system. These two divisions of our company were able to work closely together during the development of this project, streamlining the production of this system and simplifying the process for the customer.

This vacuum bag lifter uses a venturi pump to create suction and has a ergonomic floating handle, and a pneumatic two-hand safety switch to prevent the operator from releasing the bags in mid air.

26

This vacuum lifter has adjustable vacuum cups that allows picking up different size boxes. It features an all aluminum and steel frame, 2-way x and y adjustable cups, ergonomic floating handle and is suspended from a Gorbel GeForce Intelligent Hoist with float mode.

This tool has a safety check valve and vacuum blow-off for non-porous parts.

Custom vacuum lifter to grip and pitch 250-pound refrigerator panels. The tooling has a built-in spreader bar to allow for the pickup of a complete unit after assembly. This tool has two safety features, our Griper Safety Circuit that prevents the accidental release of the panel and our Residual Vacuum Circuit that prevents the operator from lifting the panel with residual vacuum left in the cups.

27

This vacuum lifting device is designed to grip, lift, and 90 degree pitch 400-pound glass panels. The tool features proportionally adjustable pitch up/pitch down, and lift up/down controls. The vacuum lifting tool is integrated with an Easy Arm allowing the operator to precisely position the heavy glass panels.

Vacuum gripper system designed to lift up to 150 pound boxes from the side. This tool is free from buttons or levers for control and features a force sensing handle for quick and easy lifting.

This vacuum gripper enables one operator to pick up and pitch large glass windshields.

28

This compact vacuum gripper is easily adjustable for different size boxes; and can lift up to 95 pounds.

Designed to lift and transfer 140 pound batteries with two cups and 70 pound battery with 1 cup. The tool has an interchangeable head to go from the 1 cup to 2 cup design, and can be changed in 20 seconds.

This custom vacuum tool grips, lifts, pitches and rotates oven doors. Operators can position the doors using the proportional hand controls or by hand using float mode. The tool is suspended from a Gorbel Easy Arm and features our custom Gripper Safety Circuit preventing operators from accidentally pressing the release button and dropping the doors in mid-air.

29

Watch this vacuum video to see how easily our vacuum gripper system can rotate 60 pound glass doors with a proportional electric hoist.

Vacuum lifter for stacking and palletizing boxes weighing up to 100 pounds and reaching up to 100 inches. This vacuum lifter floats the load in the vertical direction. It does not have up/down operator controls, nor does it have grip/release controls. The tool is completely self-actuating, and is ideal for palletizing and depalletizing boxes coming off a conveyor. It grips on the side of the box, so it can also handle open top boxes.

Vacuum gripper tool integrated with a Gorbel Easy Arm for lifting boxes that have open tops.

30

Vacuum gripper utilizing a Gorbel G-Force for lifting un-ground silicon ingots.

Side box vacuum lifter for stacking and palletizing flexible boxes weighing up to 40 pounds.

Vacuum gripper tool for lifting large custom fabricated sheet metal.

31

This keg lifter tool was developed to pick up beer kegs weighing up to 90lbs that had a wide range of diameters.

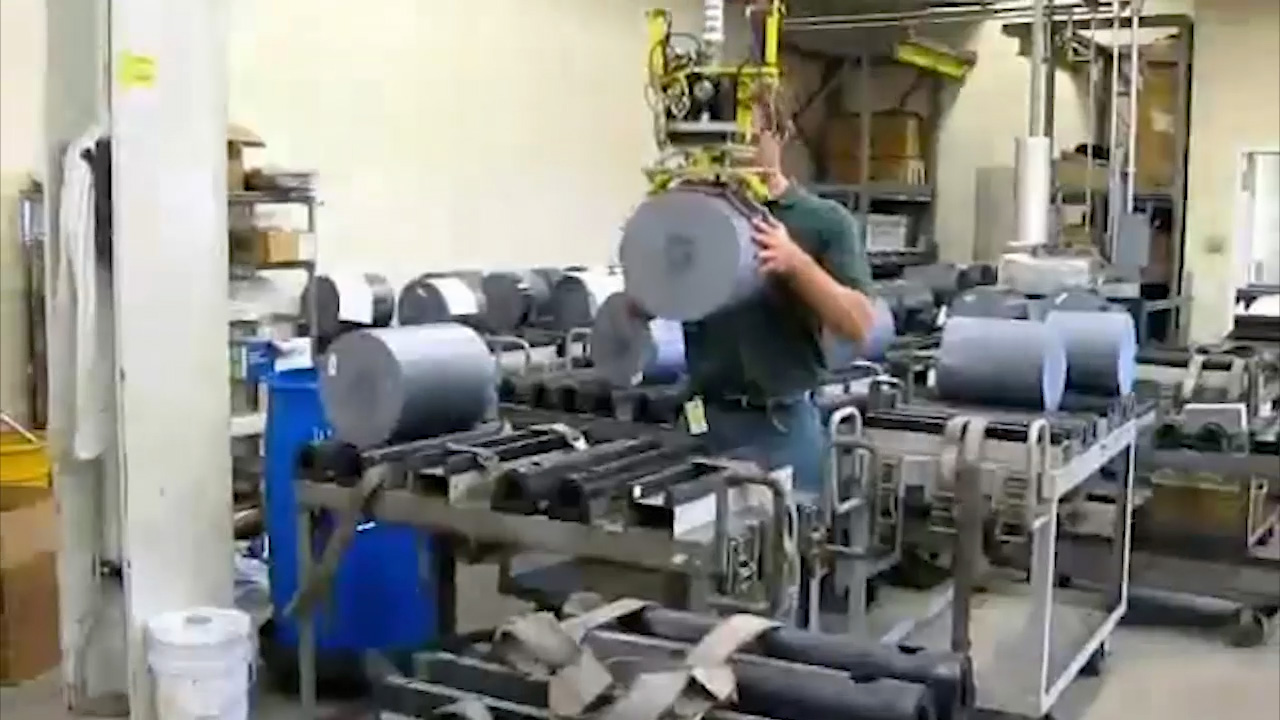

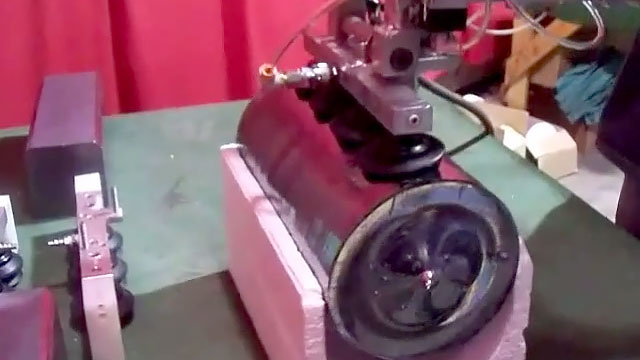

This vacuum lifter grips and rotates silicon ingots weighing up to 70 pounds.

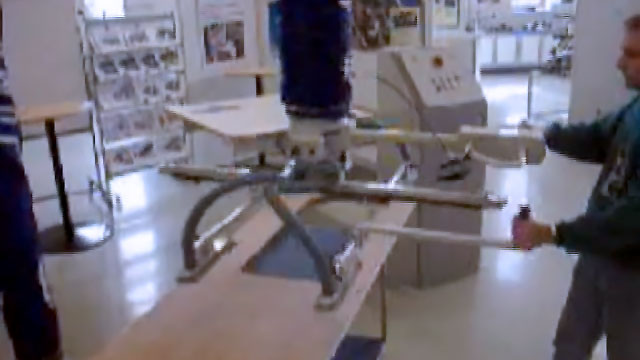

Adjustable vacuum lifter for parts that have different widths, sizes, shapes and capacity loads.

32

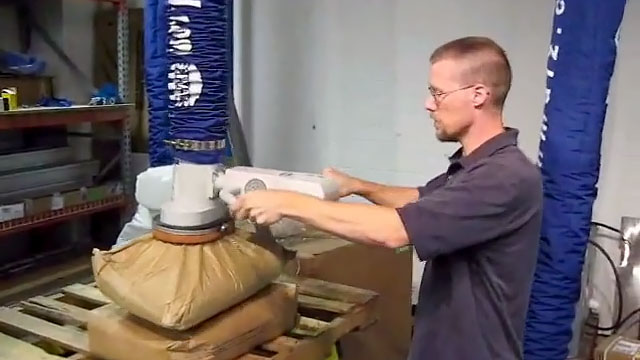

This vacuum tube lifter is designed for picking up 40 pound sacks. It features a single vacuum cup, 360 degree rotation, and rigid handle with twist grip controls.

This vacuum tube lifter is ideal for fast and precise transfer of car batteries.

A custom vacuum gripper tool utilizing an electric chain hoist for lifting large quartz crucibles.

33

These vacuum lifters are designed with a twist grip motorcycle type throttle control handle.

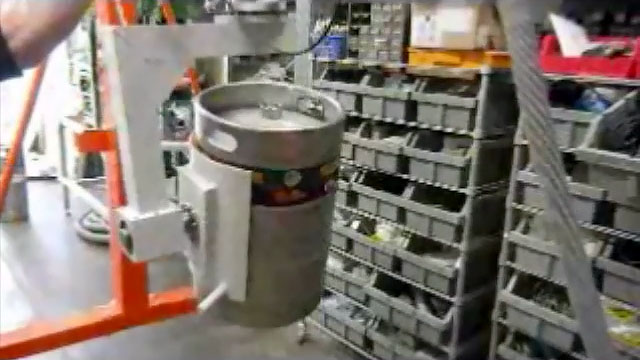

Keg lifter with vacuum suction attachment designed to lift and continuously rotate an 80 pound keg.

Single cup vacuum lifter for gripping the tip, tails and flat surfaces of the 55 pound ingot. The tool is integrated with a Gorbel G-Force.

34

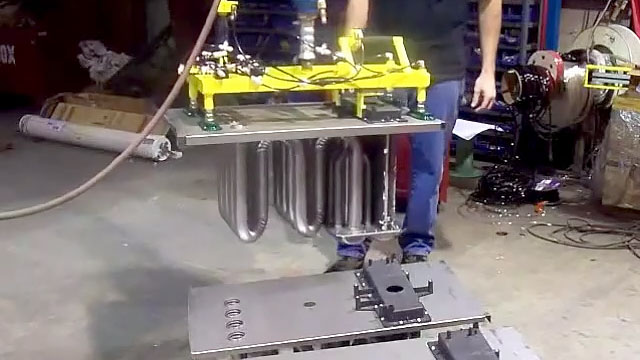

This vacuum lifter tool is designed to lift and manually pivot HVAC heat exchangers. The tool is suspended from a Gorbel G-Force smart hoist.

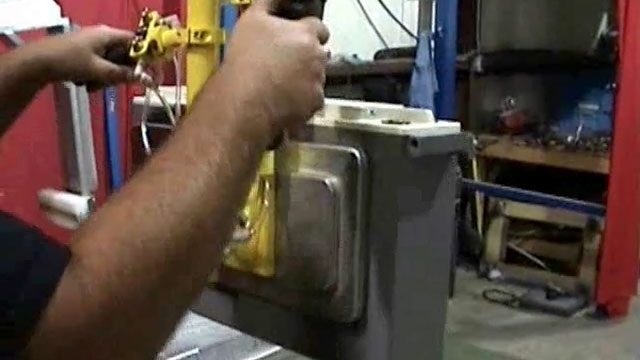

This vacuum tool is designed to lift 90 pound batteries and is integrated with a Zimmerman air balancer.

A custom vacuum gripper tool for lifting several 6-packs of cans.

35

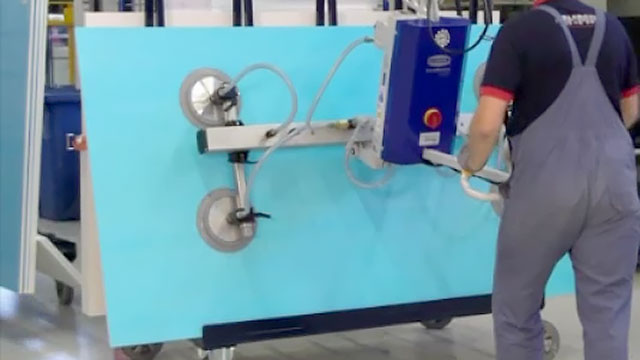

This vacuum lifting device can pitch 90 degrees; making it possible for one person to place the plastic sheets on an upright portable panel rack.

This vacuum lifting device allows transporting 275 pound, cumbersome wooden sheets with minimal effort. The electric linear drive enables rotation of the wooden sheets from the horizontal to the vertical position. The vacuum system has six suction pads, which can be adjusted individually allowing easy movement of different size wooden sheets.

This vacuum tube lifter is the perfect choice for picking up large 250 pound boxes.

36

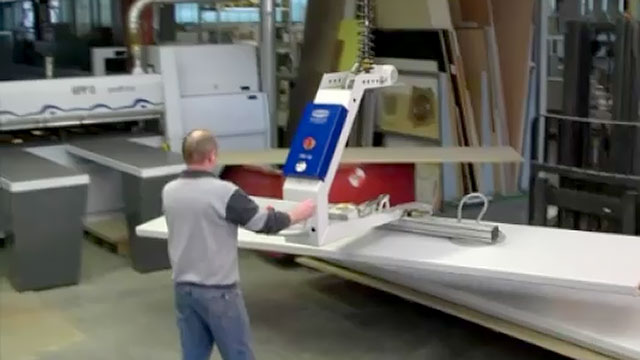

This vacuum lifter is designed to lift up to 275 pounds and rotate wooden sheets by 180 degrees. The vacuum system enables a single employee to safely, easily and precisely load or unload heavy wooden sheets.

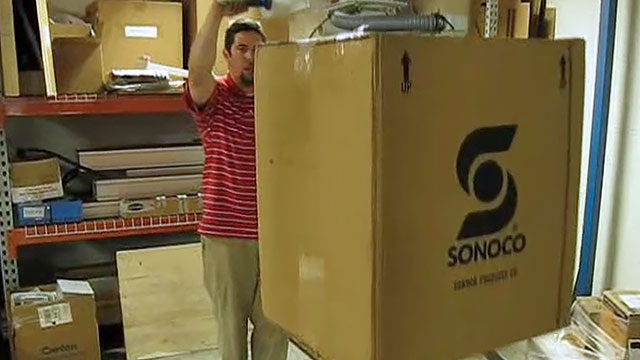

This vacuum tube lifting tool is designed with a side gripper, 360 degree rotation, and rigid handle.

This JumboFlex vacuum lifter is ideal for picking up small parts.

37

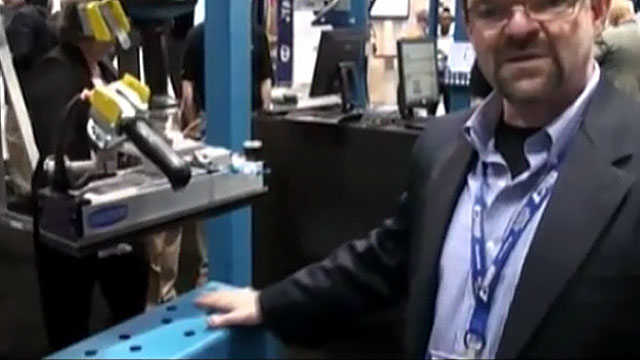

This vacuum gripper cup is designed to lift perforated parts and products the tool is mounted to a G-Force hoist.

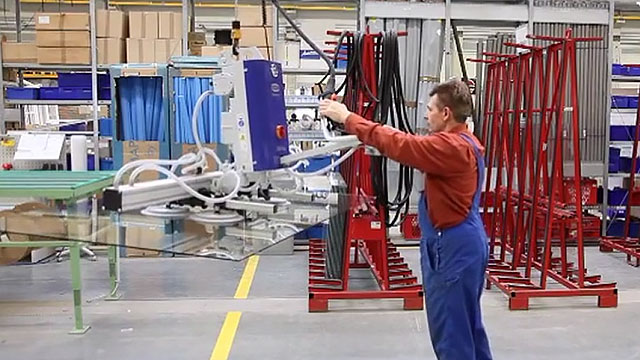

This vacuum tube lifting device is ideal for lifting large sheets of glass.

Demonstration video explaining the basic operation of a JumboFlex vacuum lifter.

38

This stainless steel vacuum lifter is suitable for food grade applications. The operator depalletizes the 60 pound bags of sugar onto the mixing stand; then dumps the sugar into the mixer.

This tool was developed to lift complete layers of food grade cups in a high cycle production environment.

Vacuum tube lifter for food grade lifting applications.

39

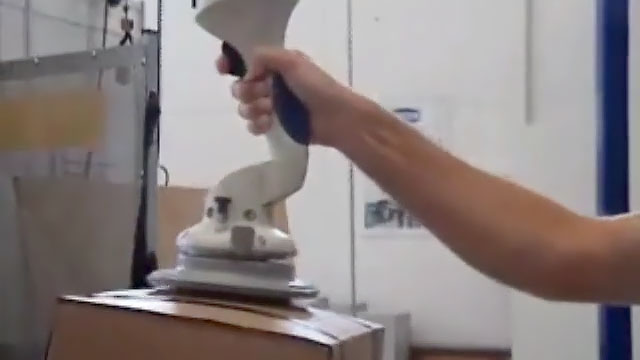

JumboFlex vacuum lifter for lifting and handling boxes.

This vacuum lifter picks up wooden closed bottom pallets.

Vacuum tube lifter with large grip head to lift 200 pound drums of material.

40

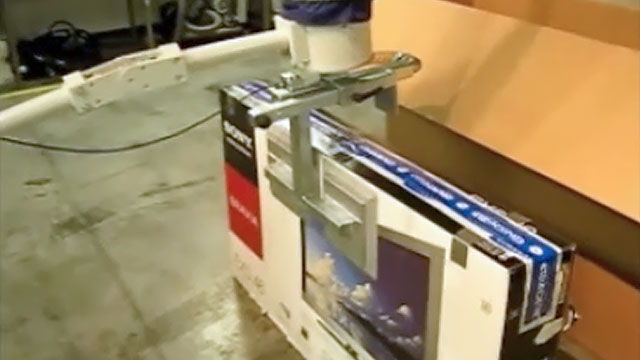

Vacuum tool designed with a side gripper and pivoting handle to lift TV's.

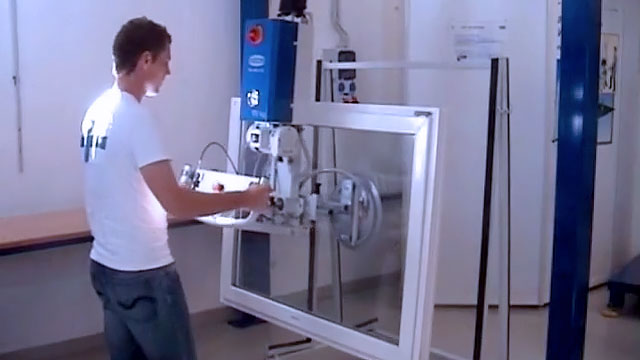

VacuMaster vacuum lifter that picks up and 90 degree rotates glass windows. The lifting device is suspended from a hoist.

This articulating jib crane is specifically designed for vacuum tube lifters. The jibs boom arms act as a chamber for providing vacuum pressure.

41

Vacuum cup lifter with 90 degree rotation for palletizing bags of fiberglass insulation. The tool is suspended from a Gorbel G-Force intelligent hoist.

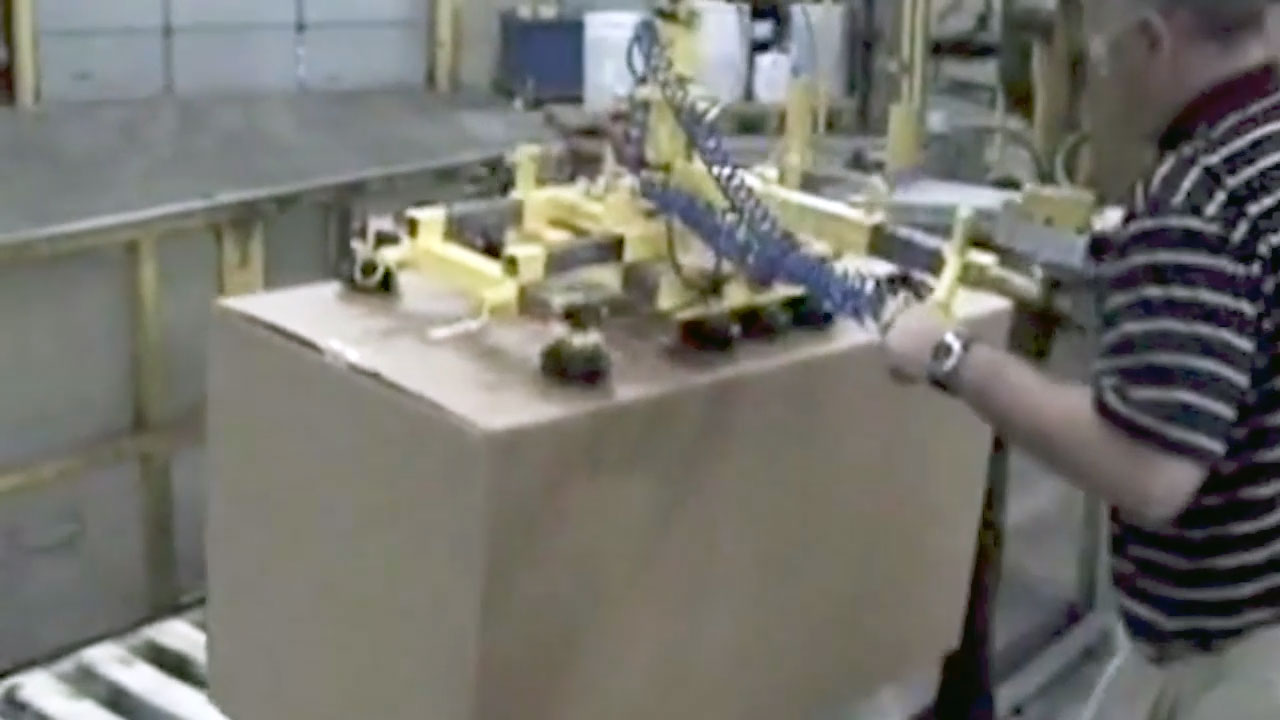

Pneumatic lifting device for loading 180 pound boxes on a pallet.

Gorbel Easy Arm integrated with a vacuum tool allowing for the lifting of 90 pound boxes and rotating 90 degrees for palletizing.

42

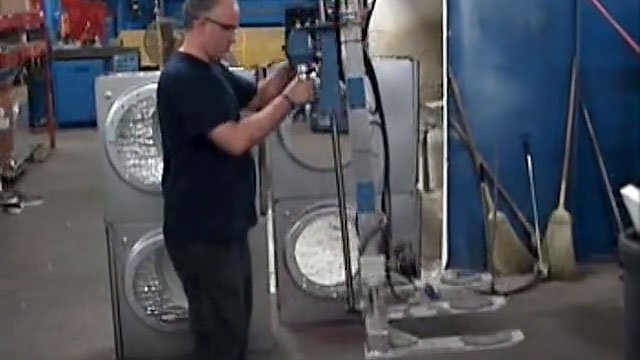

Mechanical tool for lifting 120 pound heat exchangers integrated with a Gorbel G-Force hoist. The tool uses a vacuum cup for stabilization and features an 3 foot adjustable handle.

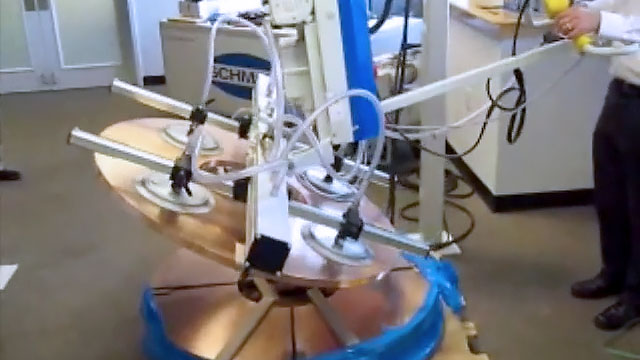

This vacuum tube gripper lifts and 90 degree pitches 100 pound coils of copper.

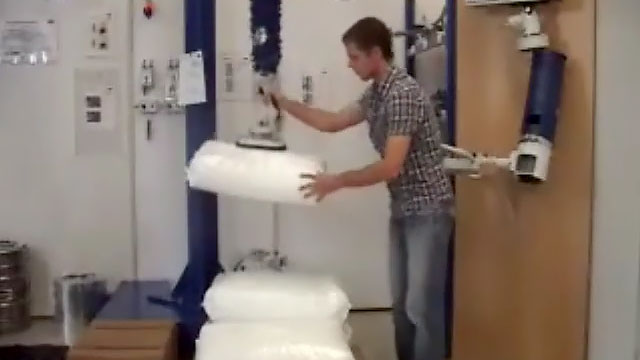

JumboFlex vacuum lifter for lifting and handling bags.

43

The ideal solution for palletizing 100 pound boxes with a vacuum lifter and a 250 pound capacity Gorbel Work Station Jib Crane.

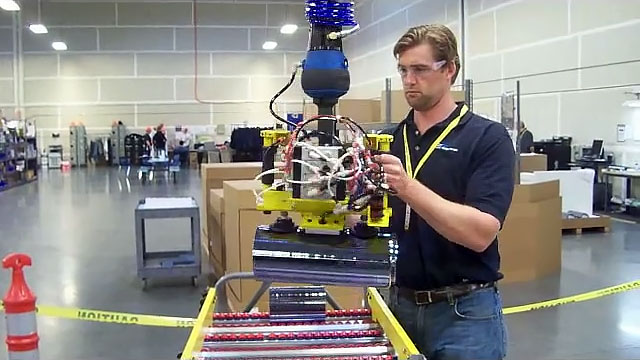

Venturi vacuum gripper for round ground silicon ingots utilizing a Gorbel G-Force for lifting.

This lifting device is smooth, quick, and precise, allowing the operators to lift the bundles easily.

44
