Overhead Crane Variable Frequency Control

Magnetek's Family of Variable Frequency Drives for your material handling, overhead crane and hoist applications.

Confused as to what drive you need? Choose the model drive you want below, and size it based on the Full Load Amps (FLA) of your motor.

Magnetek's family of Adjustable Frequency Drives is the industry leader for your overhead bridge cranes, gantry cranes, motorized jib cranes and hoists. We design these variable freq drives with versatility, reliability, and safety in mind. Magnetek crane control models range from more basic, compact low cost vfd units to advanced variable speed drive units featuring Magnetek's exclusive overhead bridge crane and hoist software. Electromotive variable frequency drives meet the demands of Material Handling applications from 1/4 HP to 1,500 HP.

Typical VFD Configuration Settings for most Applications:Soft start only — Provides adjustable acceleration, and one speed. This allows the hoist’s speed to gradually ramp up. Uses single speed control pendant (1 step buttons). Multi-speeds — Provides up to 5 "repeatable" speeds and allows for adjustable acceleration and deceleration between speeds. The number of pendant button steps corresponds to the number of speeds the VFD provides – i.e. 3 step button = 3 speeds. Infinitely Variable — Provides the ability to lock into any speed that the operator accelerates or decelerates to. To accomplish this, 3 step pendant buttons are used as follows:

  • 3rd Step (fully depressed): Hoist accelerates and stops accelerating if the highest speed is reached.
  • 2nd Step: Hoist holds a constant speed that was reached by accelerating or decelerating.
  • 1st Step: Hoist holds a constant speed that was reached by accelerating or decelerating. If the button is depressed to the first step when the hoist is stopped, the hoist will lift/lower at the lowest speed.
  • Let Go of Button: Hoist will stop immediately.
Magnetek Electromotive IMPULSE G+ Mini Adjustable Frequency Crane Controls

The IMPULSE•G+ Mini from Magnetek continues their history of providing the most reliable and cost-effective adjustable frequency crane controls available. The low horsepower (HP) IMPULSE G+ Mini is our easiest to program adjustable frequency drive to date, with user-friendly standard programming for Basic crane and hoist applications and advanced programming capability for high performance environments. The IMPULSE G+ Mini adjustable speed drive is designed with an expanded HP range and an identical dimensional footprint as the IMPULSE P3 Series 2 (up to 5HP) and a smaller footprint beyond 5HP. All this, plus assured reliability and lower cost make the IMPULSE G+ Mini Adjustable Frequency Overhead Bridge Crane Control the product of choice for your overhead material handling needs.

Voltage Max. Motor FLA Motor HP* Part Number Price
460 VAC 1.2 1/2 4001-G+M Click for Pricing
1.8 3/4 4002-G+M Click for Pricing
3.4 1 & 2 4003-G+M Click for Pricing
4.8 3 4004-G+M Click for Pricing
9.2 5 4009-G+M Click for Pricing
14.8 7.5 4014-G+M Click for Pricing
18 10 4018-G+M Click for Pricing
24 15 4024-G+M Click for Pricing
31 20 4031-G+M Click for Pricing
*Horsepowers are provided for reference only and should not be used for drive sizing. Drives should be sized according to actual motor Full Load Amps (FLA). Prices include 120 Volt control voltage interface card and basic instruction manual - 24VAC or 48VAC card can be substituted upon request.
Voltage Max. Motor FLA Motor HP* Part Number Price
230 VAC 1.6 1/4 2001-G+M Click for Pricing
3 1/2 2003-G+M Click for Pricing
5 1 2005-G+M Click for Pricing
8 2 2008-G+M Click for Pricing
11 3 2011-G+M Click for Pricing
17.5 5 2017-G+M Click for Pricing
25 7.5 2025-G+M Click for Pricing
33 10 2033-G+M Click for Pricing
47 15 2047-G+M Click for Pricing
60 20 2060-G+M Click for Pricing
*Horsepowers are provided for reference only and should not be used for drive sizing. Drives should be sized according to actual motor Full Load Amps (FLA). Prices include 120 Volt control voltage interface card and basic instruction manual - 24VAC or 48VAC card can be substituted upon request.

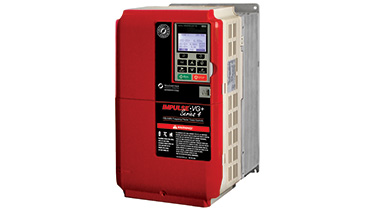

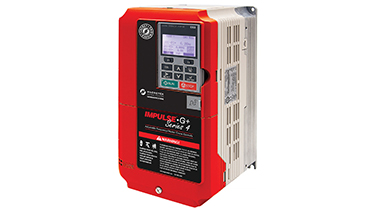

Magnetek IMPULSE G+ and VG+ Series 4 VFD/Adjustable Frequency Crane Controls

Magnetek's new IMPULSE G+ and VG+ Series 4 freq drives provide the most reliable and cost-effective adjustable frequency/variable speed overhead crane controls available. The IMPULSE G+ and VG+ Series 4 freq drives can be used as an open-loop vector or V/F crane control for traverse motions or mechanical load brake hoists. Industry-leading safety and performance features combined with our superior application expertise to provide unmatched performance for your material handling systems.

Voltage Max. Motor FLA Motor HP* Part Number Price
460 VAC IMPULSE G+ 1.8 0.75 4001-G+S4 Click for Pricing
3.4 1 4003-G+S4 Click for Pricing
4.8 2 4004-G+S4 Click for Pricing
5.5 3 4005-G+S4 Click for Pricing
7.2 5 4007-G+S4 Click for Pricing
9.2 5 4009-G+S4 Click for Pricing
14.8 7.5 4014-G+S4 Click for Pricing
18 10 4018-G+S4 Click for Pricing
24 15 4024-G+S4 Click for Pricing
31 20 4031-G+S4 Click for Pricing
39 25 4039-G+S4 Click for Pricing
45 30 4045-G+S4 Click for Pricing
60 40 4060-G+S4 Click for Pricing
75 50 4075-G+S4 Click for Pricing
91 60 4091-G+S4 Click for Pricing
112 75 4112-G+S4 Click for Pricing
150 100 4150-G+S4 Click for Pricing
180 125 4180-G+S4 Click for Pricing
216 150 4216-G+S4 Click for Pricing
260 200 4260-G+S4 Click for Pricing
304 250 4304-G+S4 Click for Pricing
370 300 4370-G+S4 Click for Pricing
450 350 4450-G+S4 Click for Pricing
605 500 4605-G+S4 Click for Pricing
*Horsepowers are provided for reference only and should not be used for drive sizing. Drives should be sized according to actual motor Full Load Amps (FLA). Prices include 120 Volt control voltage interface card and basic instruction manual - 24VAC or 48VAC card can be substituted upon request.
Voltage Max. Motor FLA Motor HP* Part Number Price
230 VAC IMPULSE G+ 3.2 0.75 2003-G+S4 Click for Pricing
5 1 2005-G+S4 Click for Pricing
6.9 1 2007-G+S4 Click for Pricing
8 2 2008-G+S4 Click for Pricing
11 2 2011-G+S4 Click for Pricing
14 3 2014-G+S4 Click for Pricing
17.5 3 2017-G+S4 Click for Pricing
25 5 2025-G+S4 Click for Pricing
33 7.5 2033-G+S4 Click for Pricing
47 10 2047-G+S4 Click for Pricing
60 15 2060-G+S4 Click for Pricing
75 20 2075-G+S4 Click for Pricing
85 30 2085-G+S4 Click for Pricing
115 40 2115-G+S4 Click for Pricing
145 50 2145-G+S4 Click for Pricing
180 60 2180-G+S4 Click for Pricing
215 75 2215-G+S4 Click for Pricing
283 100 2283-G+S4 Click for Pricing
346 125 2346-G+S4 Click for Pricing
415 150 2415-G+S4 Click for Pricing
*Horsepowers are provided for reference only and should not be used for drive sizing. Drives should be sized according to actual motor Full Load Amps (FLA). Prices include 120 Volt control voltage interface card and basic instruction manual - 24VAC or 48VAC card can be substituted upon request.
Voltage Max. Motor FLA Motor HP* Part Number Price
575 VAC, IMPULSE G+ 1.7 1 5001-G+S4 Click for Pricing
3.5 2 5003-G+S4 Click for Pricing
4.1 3 5004-G+S4 Click for Pricing
6.3 5 5006-G+S4 Click for Pricing
9.8 7.5 5009-G+S4 Click for Pricing
12.5 10 5012-G+S4 Click for Pricing
17 15 5017-G+S4 Click for Pricing
22 20 5022-G+S4 Click for Pricing
27 25 5027-G+S4 Click for Pricing
32 30 5032-G+S4 Click for Pricing
41 40 5041-G+S4 Click for Pricing
52 50 5052-G+S4 Click for Pricing
62 60 5062-G+S4 Click for Pricing
77 75 5077-G+S4 Click for Pricing
99 100 5099-G+S4 Click for Pricing
130 125 5130-G+S4 Click for Pricing
172 150 5172-G+S4 Click for Pricing
200 200 5200-G+S4 Click for Pricing
*Horsepowers are provided for reference only and should not be used for drive sizing. Drives should be sized according to actual motor Full Load Amps (FLA). Prices include 120 Volt control voltage interface card and basic instruction manual - 24VAC or 48VAC card can be substituted upon request.
Voltage Max. Motor FLA Motor HP* Part Number Price
460 VAC, IMPULSE VG+ 1.8 0.75 4001-VG+S4 Click for Pricing
3.4 1 4003-VG+S4 Click for Pricing
4.8 2 4004-VG+S4 Click for Pricing
5.5 3 4005-VG+S4 Click for Pricing
7.2 5 4007-VG+S4 Click for Pricing
9.2 5 4009-VG+S4 Click for Pricing
14.8 7.5 4014-VG+S4 Click for Pricing
18 10 4018-VG+S4 Click for Pricing
24 15 4024-VG+S4 Click for Pricing
31 20 4031-VG+S4 Click for Pricing
39 25 4039-VG+S4 Click for Pricing
45 30 4045-VG+S4 Click for Pricing
60 40 4060-VG+S4 Click for Pricing
75 50 4075-VG+S4 Click for Pricing
91 60 4091-VG+S4 Click for Pricing
112 75 4112-VG+S4 Click for Pricing
150 100 4150-VG+S4 Click for Pricing
180 125 4180-VG+S4 Click for Pricing
216 150 4216-VG+S4 Click for Pricing
260 200 4260-VG+S4 Click for Pricing
304 250 4304-VG+S4 Click for Pricing
370 300 4370-VG+S4 Click for Pricing
450 350 4450-VG+S4 Click for Pricing
605 500 4605-VG+S4 Click for Pricing
*Horsepowers are provided for reference only and should not be used for drive sizing. Drives should be sized according to actual motor Full Load Amps (FLA). Prices include 120 Volt control voltage interface card and basic instruction manual - 24VAC or 48VAC card can be substituted upon request.
Voltage Max. Motor FLA Motor HP* Part Number Price
230 VAC, IMPULSE VG+ 3.2 0.75 2003-VG+S4 Click for Pricing
5 1 2005-VG+S4 Click for Pricing
6.9 1 2007-VG+S4 Click for Pricing
8 2 2008-VG+S4 Click for Pricing
11 2 2011-VG+S4 Click for Pricing
14 3 2014-VG+S4 Click for Pricing
17.5 3 2017-VG+S4 Click for Pricing
25 5 2025-VG+S4 Click for Pricing
33 7.5 2033-VG+S4 Click for Pricing
47 10 2047-VG+S4 Click for Pricing
60 15 2060-VG+S4 Click for Pricing
75 20 2075-VG+S4 Click for Pricing
85 30 2085-VG+S4 Click for Pricing
115 40 2115-VG+S4 Click for Pricing
145 50 2145-VG+S4 Click for Pricing
180 60 2180-VG+S4 Click for Pricing
215 75 2215-VG+S4 Click for Pricing
283 100 2283-VG+S4 Click for Pricing
346 125 2346-VG+S4 Click for Pricing
415 150 2415-VG+S4 Click for Pricing
*Horsepowers are provided for reference only and should not be used for drive sizing. Drives should be sized according to actual motor Full Load Amps (FLA). Prices include 120 Volt control voltage interface card and basic instruction manual - 24VAC or 48VAC card can be substituted upon request.
Voltage Max. Motor FLA Motor HP* Part Number Price
575 VAC, IMPULSE VG+ 1.7 1 5001-VG+S4 Click for Pricing
3.5 2 5003-VG+S4 Click for Pricing
4.1 3 5004-VG+S4 Click for Pricing
6.3 5 5006-VG+S4 Click for Pricing
9.8 7.5 5009-VG+S4 Click for Pricing
12.5 10 5012-VG+S4 Click for Pricing
17 15 5017-VG+S4 Click for Pricing
22 20 5022-VG+S4 Click for Pricing
27 25 5027-VG+S4 Click for Pricing
32 30 5032-VG+S4 Click for Pricing
41 40 5041-VG+S4 Click for Pricing
52 50 5052-VG+S4 Click for Pricing
62 60 5062-VG+S4 Click for Pricing
77 75 5077-VG+S4 Click for Pricing
99 100 5099-VG+S4 Click for Pricing
130 125 5130-VG+S4 Click for Pricing
172 150 5172-VG+S4 Click for Pricing
200 200 5200-VG+S4 Click for Pricing
*Horsepowers are provided for reference only and should not be used for drive sizing. Drives should be sized according to actual motor Full Load Amps (FLA). Prices include 120 Volt control voltage interface card and basic instruction manual - 24VAC or 48VAC card can be substituted upon request.

Whether you need variable frequency motor controls for you smallest hoist or largest overhead bridge crane Ergonomic Partners can provide a solution. Ergonomic Partners serves clients from coast to coast, Canada, Mexico and especially focused in the states of Missouri, Illinois, Indiana, Kansas, Arkansas, Mississippi, Nebraska, Tennessee, Kentucky, Iowa, and Oklahoma.
